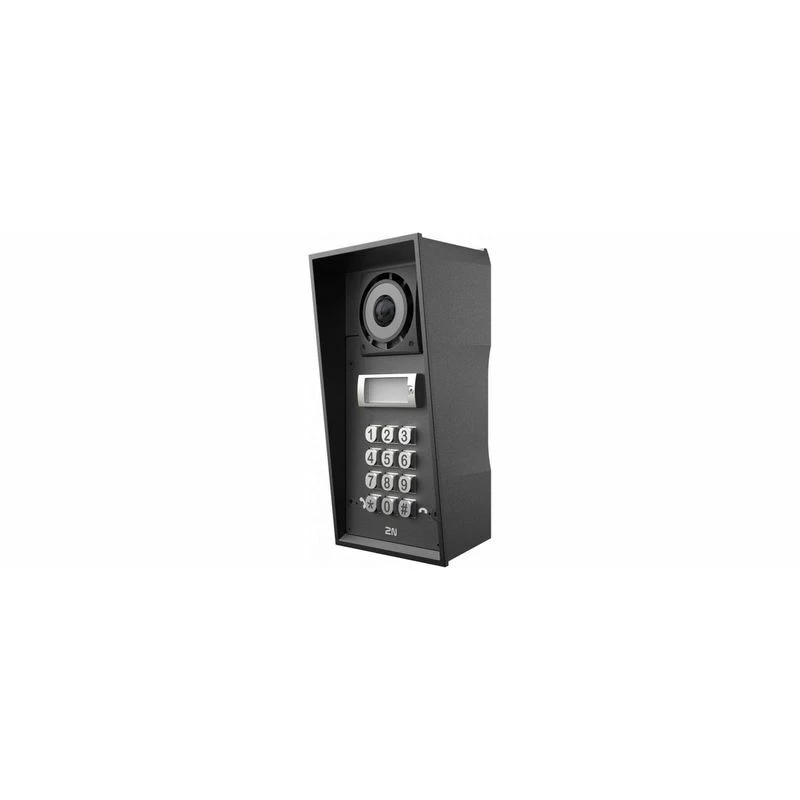

2N IP Force 2.0 - 1 Button, Camera, Keypad

The 2N IP Force 2.0 is a robust IP intercom and door entry system designed for high-security environments. With a single backlit call button, integrated HD camera, and a 12-key numeric keypad, it offers reliable communication and access control. Built to withstand extreme conditions, it features IK10 vandal resistance and IP69K waterproof rating, making it ideal for outdoor and industrial use.

Advantages

Exceptional durability with IK10 and IP69K ratings, ensuring operation in harsh weather and against vandalism. High-quality audio and video with a 10W speaker, HD camera (1280x960), and wide 135° horizontal field of view. Flexible integration via SIP and ONVIF support, plus PoE for simple installation.

Suitable for

• Apartment buildings and gated communities
• Industrial facilities and warehouses
• Office buildings and commercial premises
• High-security areas requiring vandal-resistant equipment

Key specifications

• Product Type: IP Intercom / Door Entry System
• Number of Buttons: 1 (backlit)
• Camera Resolution: HD 1280x960
• Camera Field of View (Horizontal): 135°
• Camera Field of View (Vertical): 109°
• Night Vision: Yes, with IR illumination
• Keypad: 12 numeric keys (backlit)
• Speaker Power: 10W
• Connectivity: 10/100BASE-TX Ethernet (RJ-45)
• Power over Ethernet (PoE): Yes, 802.3af (Class 0)
• SIP Support: Yes
• ONVIF Support: Yes
• Vandal Resistance: IK10
• Ingress Protection: IP69K
• Operating Temperature: -40°C to +55°C
• Audio Codecs: G.711, G.729, G.722, L16/16kHz
• Video Codecs: H.263, H.263+, H.264, MJPEG
• Relay Outputs: 2 (NO/NC contacts)
• Inputs: 2 (passive/active mode)

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure proper mounting at a height suitable for camera and keypad access. The device supports integration with most SIP-based PBX systems and ONVIF-compatible video management software.
