ABUS AZBE10000 Terxon SX LCD Control Unit

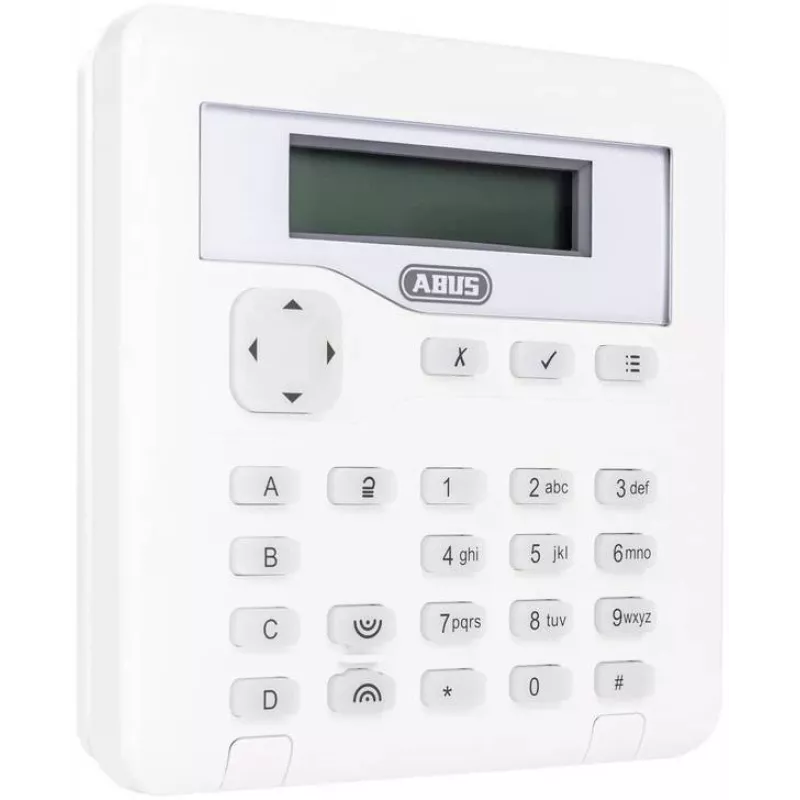

Security installers and facility managers rely on the ABUS AZBE10000 Terxon SX LCD Control Unit for daily arming, disarming, and status checks of the Terxon SX alarm system. Mounted near entry doors or in control rooms, this white surface-mounted keypad provides clear two-line LCD feedback and tactile membrane keys for confident operation even in low light.

Key specifications

• 2-line LCD display with 16 characters per line and backlight
• Membrane keypad with backlight for dark environments
• 4-wire bus connection to the Terxon SX alarm panel
• 12 V DC power supply from the panel, max. 100 mA current draw
• Tamper protection against opening or removal
• Operating temperature range: -10°C to +55°C
• Housing material: ABS plastic, colour white

Why choose it

This control unit is the original ABUS accessory for the Terxon SX series, guaranteeing full compatibility and reliable performance. The backlit display and keys make it easy to use at night or in poorly lit areas, while the tamper switch adds an extra layer of security. Installation is straightforward with the 4-wire bus, and the compact design fits standard flush or surface boxes.

Ideal use cases

• Arming and disarming the Terxon SX alarm system from a convenient location
• Checking system status, event memory, and fault indications
• Programming installer and user settings on-site
• Replacing a damaged or outdated keypad in an existing installation

Good to know

The AZBE10000 is a wired control unit; it does not include a battery and must be connected to the Terxon SX panel via the 4-wire bus. It is designed for indoor use and should be mounted on a flat surface. The tamper contact triggers an alarm if the unit is opened or removed from the wall, providing additional protection against sabotage.
