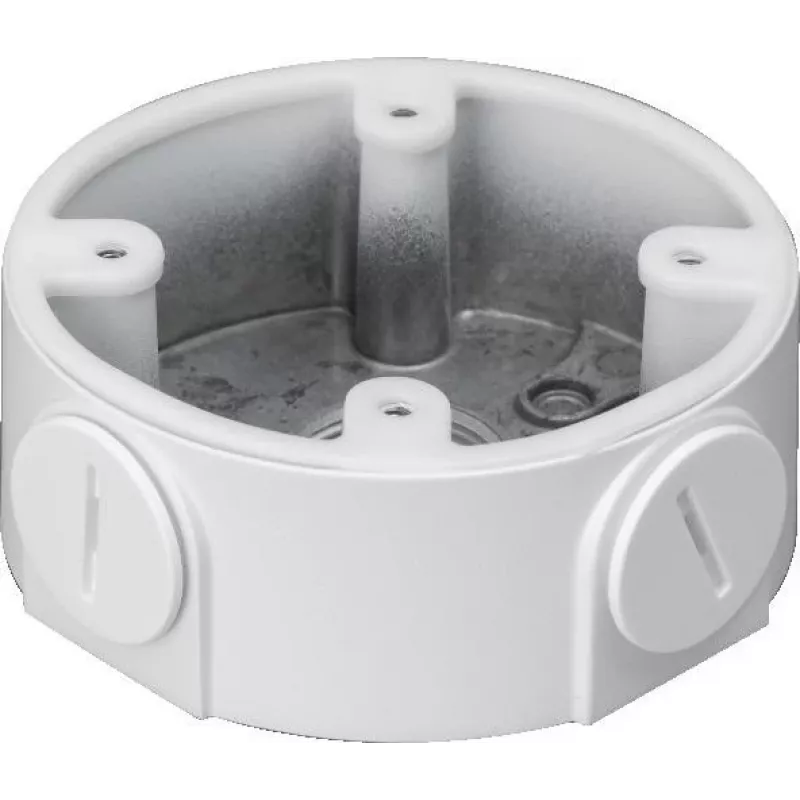

BCS LINE BCS-AD11 Adapter

The BCS LINE BCS-AD11 is a mounting box designed for BCS LINE series cameras. It features a white aluminium housing and offers flexible wall or ceiling installation.

Key features

• Designed for BCS LINE series cameras
• White aluminium housing
• Wall or ceiling mounting
• Maximum load: 3 kg
• Thread: G3/4''
• Threaded cable glands: 2×3/4''
• IP66 protection rating
• Operating conditions: -40°C~+60°C, max 90% RH

Specifications

• Brand: BCS
• MPN: AD11
• Product line: BCS LINE
• Device type: Mounting box
• Housing colour: White
• Material: Aluminium
• Maximum load: 3 kg
• Thread: G3/4''
• Threaded cable glands: 2×3/4''
• Protection class: IP66
• Operating conditions: -40°C~+60°C, max 90% RH
• Mounting: Wall, ceiling
• Dimensions: Ø96.7×37.2 mm
• Weight: 0.17 kg
