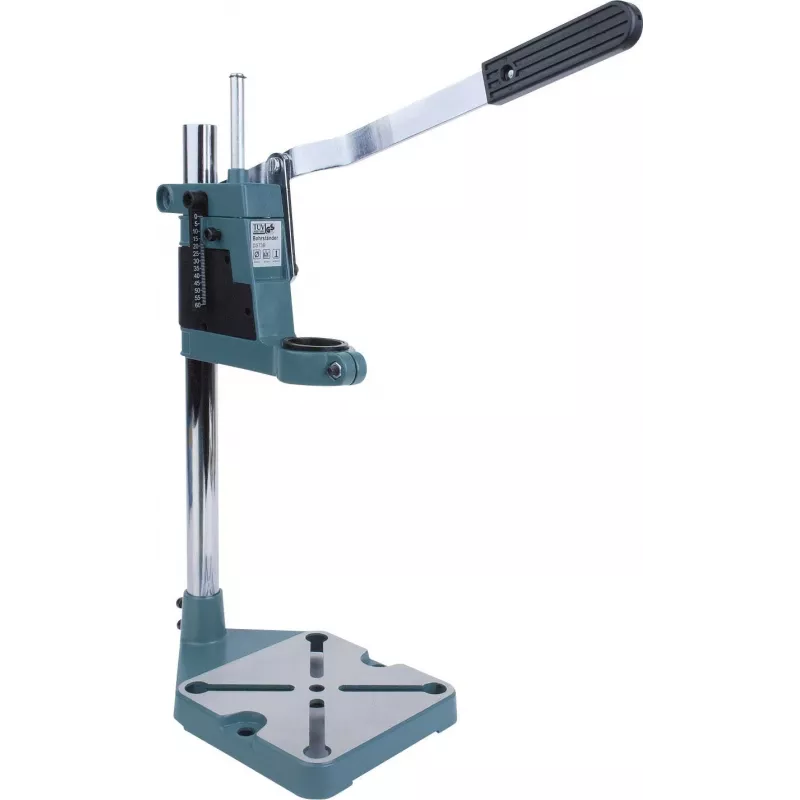

Brüder Mannesmann Drill Stand M1255-420

Unlike a handheld drill, this stand locks your drill into a rigid, guided column for perfectly vertical holes with controlled depth. The cast iron base and steel column absorb vibration, while the 60 mm stroke and return spring make repetitive drilling precise and effortless.

Highlights

• 43 mm spindle collar fits standard hand drills
• Cast iron base with mounting holes for workbench
• Adjustable depth stop for repeatable hole depth
• Return spring lifts drill automatically
• Slots for optional vise mounting

In daily use

Clamp your drill into the 43 mm collar, set the depth stop, and lower the lever. The steel column guides the drill straight down, and the spring returns it after each hole. The base can be bolted to a bench or used with a vise for small workpieces.

Full specifications

• Column height: 500 mm
• Column diameter: 25 mm
• Working stroke: 60 mm
• Base plate dimensions: 220 x 150 mm
• Throat depth: approx. 100 mm
• Material: cast iron base, steel column
• Colour: blue / black / silver

Final note

A solid, no-frills drill stand that turns a hand drill into a bench drill press for accurate, repeatable holes.
