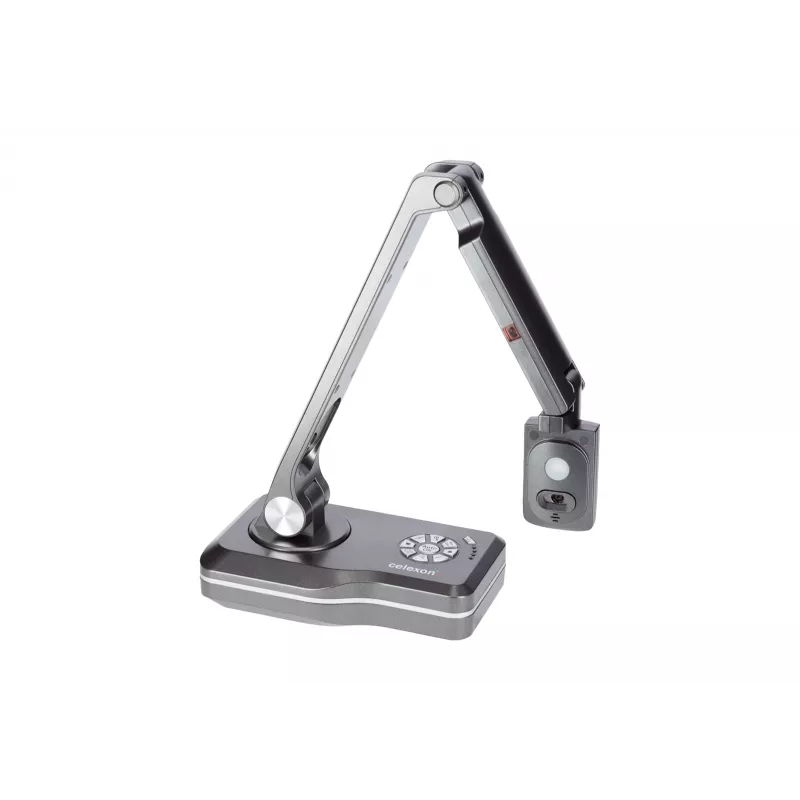

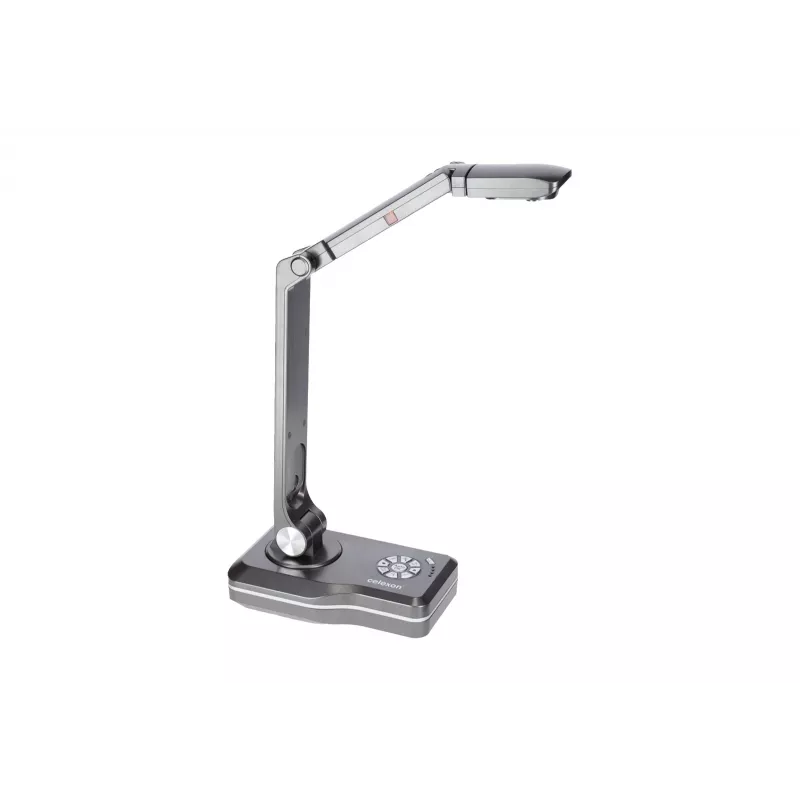

celexon DK500 Digital Document Camera

The celexon DK500 is a high-quality digital document camera designed for educational and professional environments. It captures detailed images and videos of documents, objects, and 3D materials with ease, making it ideal for presentations, lectures, and collaborative work.

Advantages

With a 5-megapixel CMOS sensor, the DK500 delivers crisp and clear images up to QXGA resolution (2592x1944). Its 8x digital zoom and auto-focus ensure that even the smallest details are visible. The integrated LED light provides consistent illumination, while the foldable design makes it portable and easy to store. Multiple connectivity options (USB, HDMI, VGA) allow seamless integration with various display devices.

Suitable for

• Teachers and educators for classroom demonstrations
• Business professionals for meetings and training sessions
• Content creators for live streaming or recording
• Anyone needing to share physical documents or objects digitally

Key specifications

• Sensor: 5 MP CMOS
• Max Resolution: 2592x1944 (QXGA)
• Supported Video Resolutions: 1080p, 720p, XGA
• Frame Rate: 30 fps at 1080p
• Zoom: 8x digital
• Focus: Auto
• Lighting: Integrated LED
• Max Capture Area: A4 (297x210 mm)
• Connectivity: USB 2.0 Type B, HDMI Out, VGA Out
• Built-in Microphone: Yes
• Software: Annotation and recording software included
• Power: 5V DC via USB or optional adapter
• Compatible OS: Windows, macOS

Recommendations

For optimal performance, use the included USB cable to connect to a computer or laptop. The optional power adapter ensures stable operation.
