DSIT N_CMP-RCT11 tone generator and inductive probe kit

Trace and identify cables up to 3 km with the DSIT N_CMP-RCT11 tone generator and inductive probe kit. The generator outputs a dual tone with >10V peak-to-peak, while the probe features audible tone and LED signal strength indication for precise wire identification.

Overview

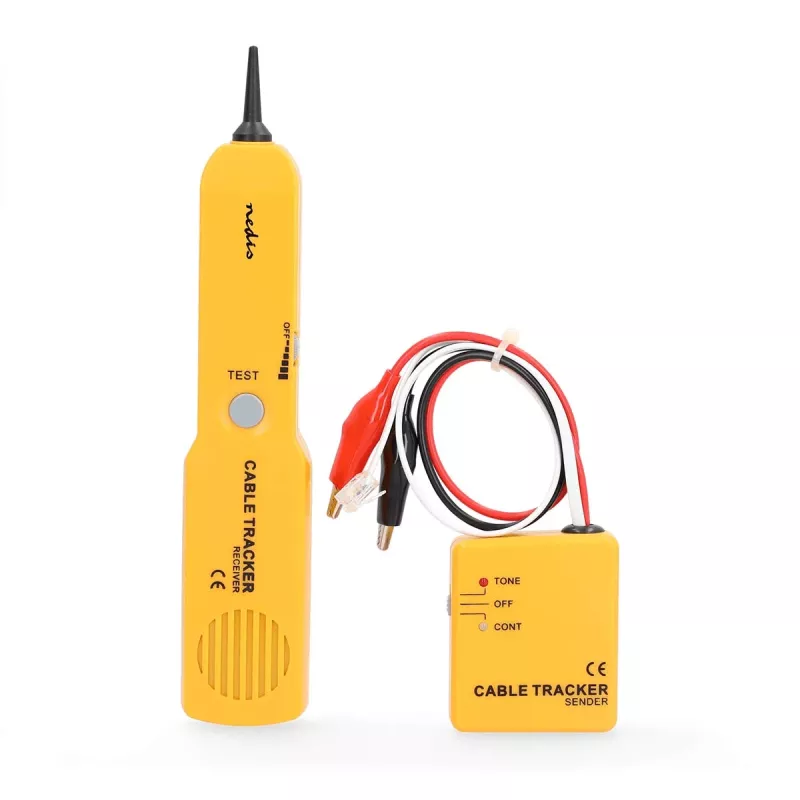

The DSIT N_CMP-RCT11 is a professional cable tracing and testing kit. It includes a tone generator and an inductive probe, designed for RJ45 (UTP/STP), RJ11/RJ12 telephone, and coaxial (BNC/F-type) cables. The generator supports continuity, line polarity, and line status tests (clear/busy/ringing). The probe detects shorts, opens, and traces cables with audible and visual feedback.

What stands out

• Dual tone generation with >10V peak-to-peak output for strong signal over long runs.
• Supports RJ45, RJ11/RJ12, and coaxial cables via included adapters.
• Generator tests continuity, polarity, and line status; probe detects shorts/opens.
• Probe has headphone jack and LED signal strength indicator.
• Auto power-off preserves battery life; both units use 9V PP3 batteries (not included).
• Comes with carrying case, RJ11 and RJ45 patch cables, coaxial adapter, and alligator clip adapter.

Technical details

• Kit components: tone generator, inductive probe
• Cable types: RJ45 (UTP/STP), RJ11/RJ12, coaxial (BNC/F-type)
• Tone frequency: dual tone
• Tone output: >10V peak-to-peak
• Generator connectors: 1x RJ45, 1x RJ11, 1x coaxial (via adapter)
• Generator tests: continuity, line polarity, line status (clear/busy/ringing)
• Probe tests: cable tracing, wire identification, short/open circuit detection
• Generator indication: LEDs for power, continuity, polarity, line status
• Probe indication: audible tone, LED signal strength
• Power: 1x 9V PP3 battery per unit (not included)
• Auto power-off: yes
• Headphone jack on probe: yes
• Operating temperature: 0°C to 50°C
• Storage temperature: -10°C to 60°C
• Humidity: 10% to 90% RH non-condensing
• Housing: durable ABS plastic
• Max tracing length: up to 3 km

Our verdict

A reliable and versatile cable tracing kit for network and telecom technicians. The strong tone output and long tracing range make it suitable for large installations, while the comprehensive testing functions and included accessories offer excellent value.
