DSIT UTP CAT6a Patch Cable 2m White - 100% Copper DC-U6A2-002

For installations where signal integrity cannot be compromised, this DSIT CAT6a patch cable stands out by using 100% pure copper conductors instead of the copper-clad aluminium found in many budget alternatives. That choice directly translates to lower resistance, better heat dissipation, and full support for 10-Gigabit Ethernet over the full 2-metre run. The unshielded twisted pair design keeps the cable flexible and easy to route, while the white PVC jacket blends neatly into walls, desks, and cable trays.

Highlights

• Certified CAT6a performance with up to 500 MHz bandwidth
• 100% pure copper stranded conductors (AWG 26/7) for maximum conductivity
• Supports 10GBASE-T, PoE, PoE+, and PoE++ for high-power devices

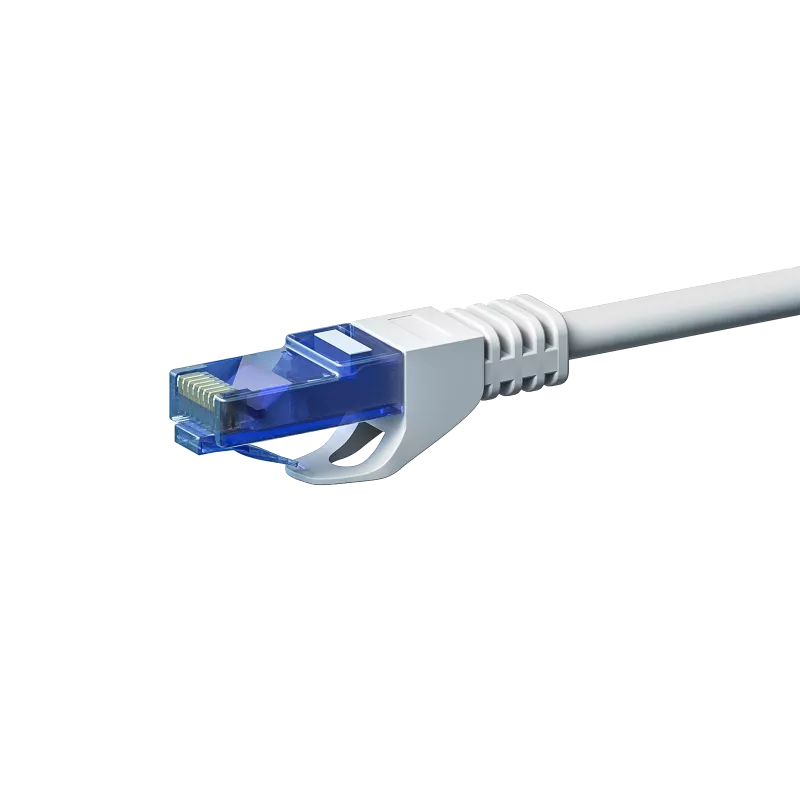

• Gold-plated RJ45 connectors with snagless moulded boots
• Wired to TIA/EIA 568B for universal compatibility

In daily use

Patch panels, switches, access points, and PoE-powered cameras all benefit from the headroom this cable provides. The stranded copper core survives repeated bending and re-patching without breaking, and the snagless boot protects the locking tab when pulling through dense cable bundles. At 2 metres, it is the right length for tidy server-room connections or desk-to-wall links without excess slack.

Full specifications

• Cable type: Ethernet Patch Cable
• Category: CAT6a
• Shielding: UTP (Unshielded Twisted Pair)
• Conductor material: 100% pure copper
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Length: 2 m
• Colour: White
• Connectors: RJ45 male to RJ45 male, gold-plated
• Wiring standard: TIA/EIA 568B
• Conductor gauge: AWG 26/7 stranded
• Jacket material: PVC
• Boot type: Snagless moulded
• PoE support: PoE, PoE+, PoE++
• Number of pairs: 4 twisted pairs
• Outer diameter: approx. 6.2 mm
• Compliance: RoHS, CE

Final note

When a copper-clad cable fails under PoE load or drops to 1 Gbps, the difference becomes obvious. This DSIT patch cable is built for professionals who would rather install once and forget the link exists.
