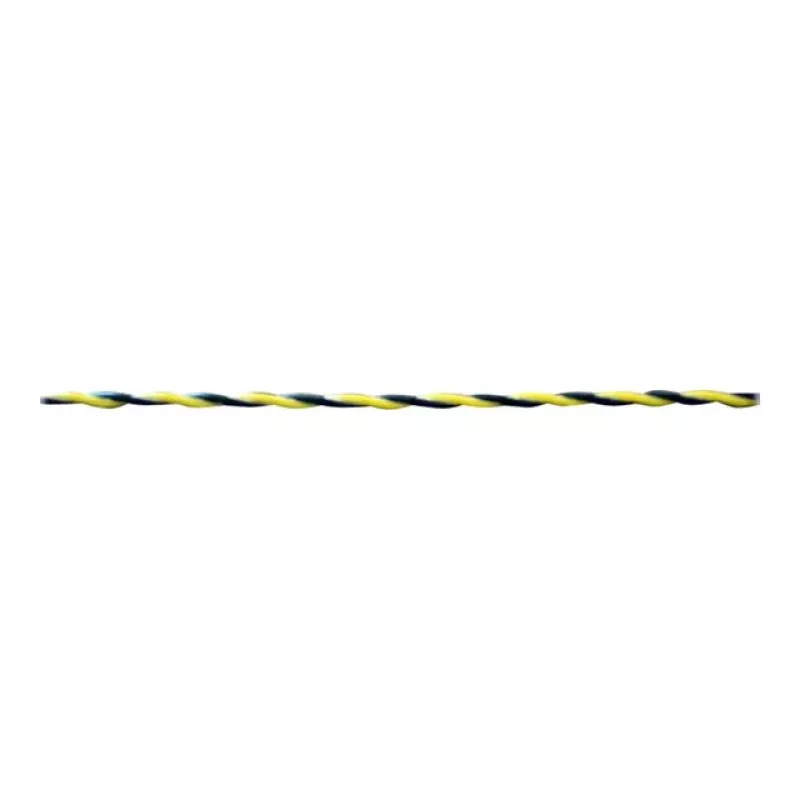

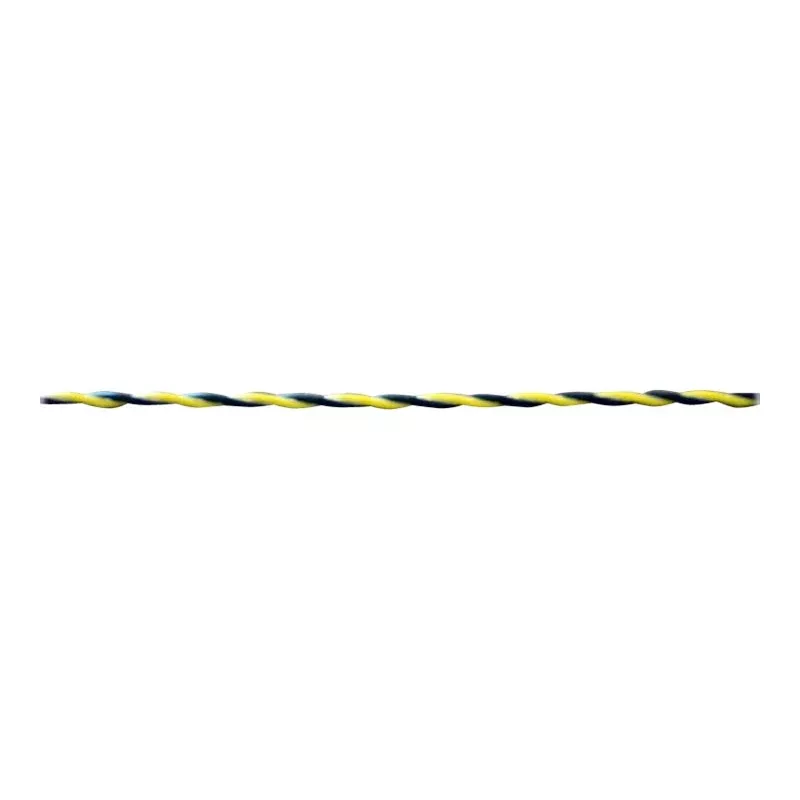

Elsys Water leak detection sensor cable

Detect water leaks instantly along the entire 3-meter length with the Elsys WLCABLE-PER-M sensor cable. Built for Elsys LoRaWAN water leak sensors like the ELT-2HP and ERS Eye, this passive cable uses conductive detection to trigger alerts the moment moisture appears—no power source needed, just plug in and monitor.

Overview

The WLCABLE-PER-M is a flexible, surface-mountable water leak detection cable engineered for indoor environments. Its PVC insulation and 3.5mm audio jack connector ensure a secure, reliable link to compatible Elsys sensors. Operating across a wide temperature range from -30°C to +70°C and tolerating up to 100% non-condensing humidity, this cable is ready for basements, server rooms, laundry areas, and more.

What stands out

• Full-length detection: any point along the 3m cable senses water, maximizing coverage.
• Passive operation: draws power from the connected sensor—no batteries or external supply needed.
• Durable build: PVC insulation resists wear, with an operating range of -30°C to +70°C.
• Simple integration: standard 3.5mm jack plugs directly into Elsys LoRaWAN sensors.
• Certified safety: CE and RoHS compliant for peace of mind.

Technical details

• Cable length: 3 meters
• Detection principle: conductive (water presence)
• Connector type: 3.5mm audio jack
• Cable material: PVC insulated
• Operating temperature: -30°C to +70°C
• Storage temperature: -40°C to +85°C
• Operating humidity: 0% to 100% RH (non-condensing)
• Response time: instantaneous upon water contact (sensor dependent)
• Installation: surface mountable, flexible
• Color: white/grey
• Application environment: indoor
• Power source: passive (powered by connected sensor)
• Certifications: CE, RoHS
• Compatibility: Elsys LoRaWAN water leak sensors (e.g., ELT-2HP, ERS Eye)

Our verdict

The Elsys WLCABLE-PER-M is a reliable, no-fuss solution for extending water leak detection coverage. Its plug-and-play design and robust construction make it an essential accessory for any Elsys LoRaWAN deployment.
