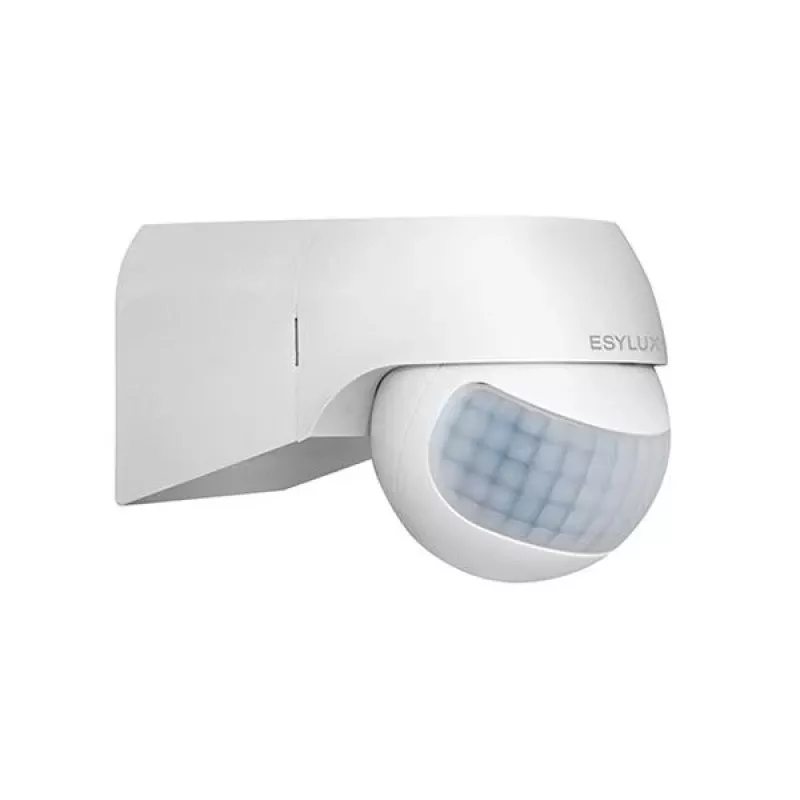

ESYLUX MD 180 Basic L White Motion Detector

The ESYLUX MD 180 Basic L is a high-quality passive infrared (PIR) motion detector designed for reliable presence and movement detection in indoor environments. With a wide 180° detection angle and a maximum range of 16 meters (tangential), it is ideal for automatic lighting control in corridors, stairwells, offices, and storage rooms. The device features a flush-mounted design for wall installation and comes in a clean white finish that blends seamlessly with any interior.

Advantages

Energy-efficient operation with low standby power consumption (<0.5 W). Easy installation at recommended height of 0.8–1.2 m. Adjustable time setting from 10 seconds to 30 minutes and brightness threshold from 5 to 2000 lux, allowing flexible customization. Robust UV-stabilised polycarbonate housing ensures long-lasting durability.

Suitable for

• Automatic lighting control in hallways, corridors, and staircases
• Presence detection in offices, meeting rooms, and storage areas
• Energy-saving applications in commercial and residential buildings

Key specifications

• Detection angle: 180°
• Detection range (max): 16 m (tangential)
• Mounting type: Flush-mounted (wall)
• Colour: White
• Protection class: IP20
• Operating voltage: 230 V AC, 50 Hz
• Max. switching power (incandescent): 2300 W
• Max. switching power (LED): 300 W
• Time setting range: 10 s – 30 min
• Brightness threshold range: 5 – 2000 Lux
• Recommended installation height: 0.8 – 1.2 m
• Sensor type: Passive Infrared (PIR)
• Standby power consumption: <0.5 W
• Operating temperature: -20 to +50 °C
• Output type: Relay (NO contact)
• Material: UV-stabilised polycarbonate
• Number of channels: 1 (Light)

Recommendations

For optimal performance, mount the detector at the recommended height and avoid obstructions that may block the sensor's field of view. Suitable for indoor use only.
