EXSYS EX-49154 D-Type Adapter USB-A Socket to Socket 90°, USB 3.2 Gen 1

Transfer data at up to 5 Gbps with this angled USB-A female-to-female adapter, built for panel mounting in industrial and professional setups.

Overview

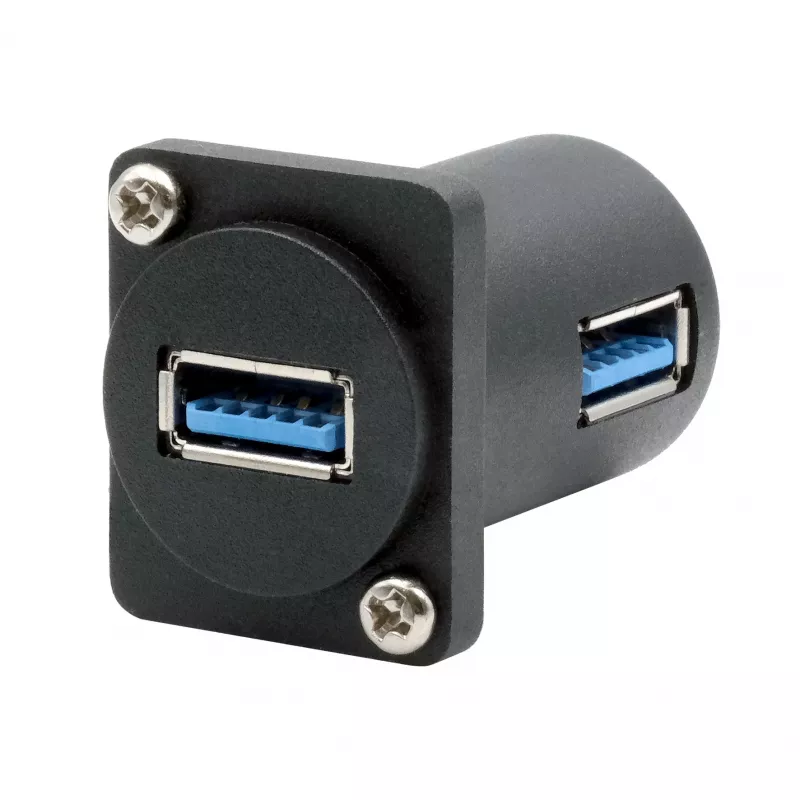

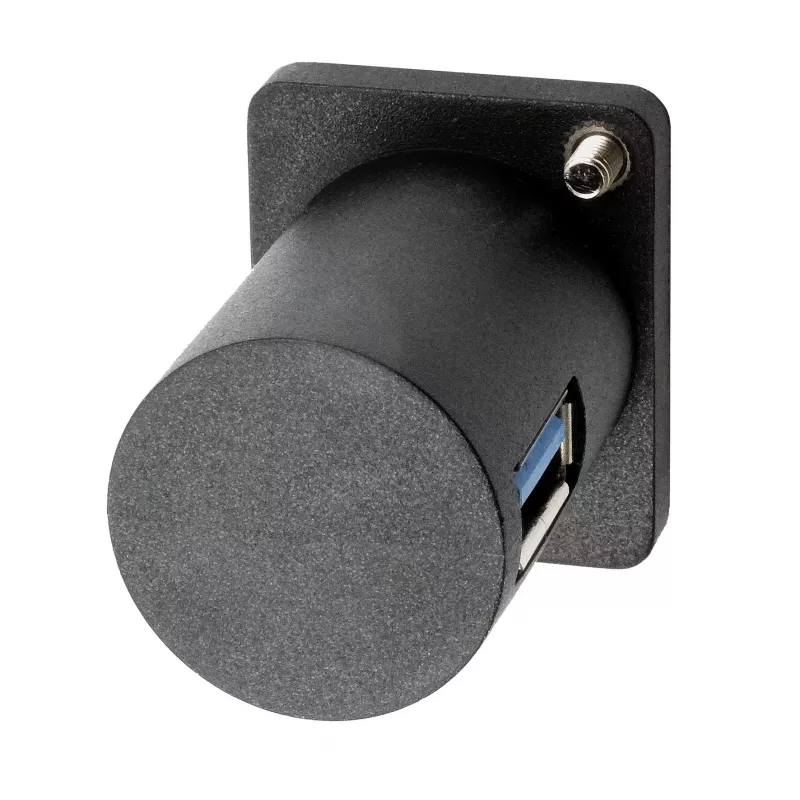

The EXSYS EX-49154 is a D-type panel mount adapter that converts a USB-A port to a 90-degree angled female connection. It supports USB 3.2 Gen 1 speeds up to 5 Gbps and is backward compatible with USB 2.0 and 1.1 devices. The zinc alloy housing ensures durability in demanding environments.

What stands out

• 90-degree angled design for tight spaces and clean cable routing
• D-type panel mount for secure integration into enclosures or racks
• USB 3.2 Gen 1 (5 Gbps) with backward compatibility
• Metal housing for long-term reliability

Technical details

• Connector A: USB-A Female
• Connector B: USB-A Female
• USB Standard: USB 3.2 Gen 1 (USB 3.0 / USB 3.1 Gen 1)
• Max Data Transfer Rate: 5 Gbps
• Form Factor: D-Type Panel Mount
• Connector Orientation: 90-degree Angled
• Housing Material: Metal (Zinc Alloy)
• Colour: Black
• Backward Compatibility: USB 2.0, USB 1.1
• Plug & Play: Yes
• Shielding: Yes

Our verdict

A robust panel-mount adapter that delivers USB 3.2 Gen 1 performance with a space-saving angled design, ideal for professional installations.
