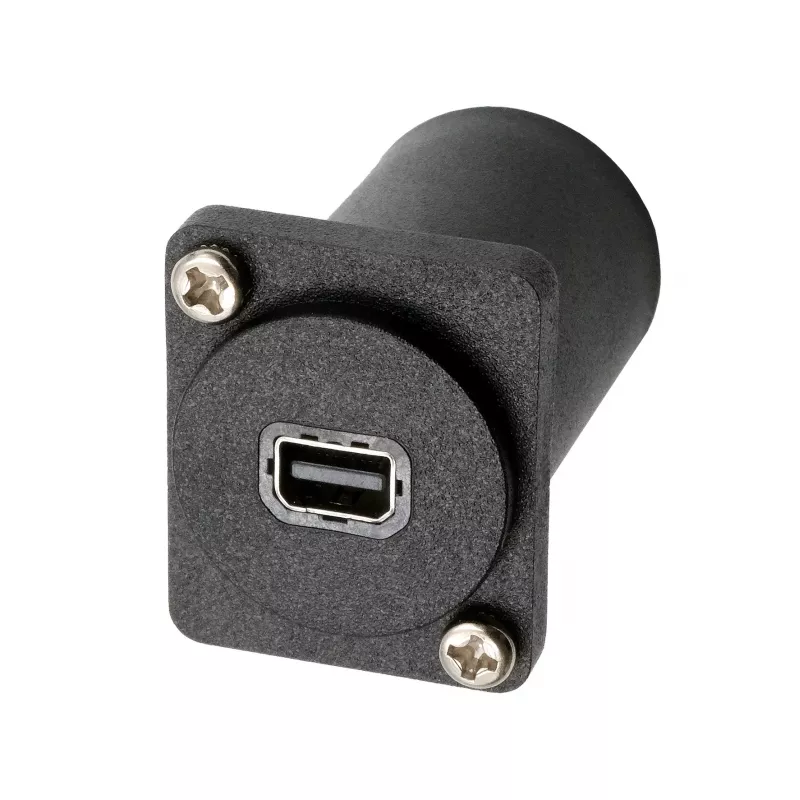

EXSYS EX-49169 D-type adapter Mini DisplayPort socket to DisplayPort socket panel mount

This D-type panel mount adapter converts a Mini DisplayPort female port into a standard DisplayPort female port, enabling flush integration into wall plates, patch panels, or custom AV installations. The EX-49169 stands out with its metal nickel-plated housing and passive design, supporting high-bandwidth video signals without external power.

Highlights

• Mini DisplayPort female to DisplayPort female, D-type form factor
• Supports DisplayPort 1.4 with up to 8K @ 60Hz or 4K @ 120Hz
• 32.4 Gbps bandwidth (HBR3), HDCP 2.2, HDR, and DSC pass-through
• Metal nickel-plated housing for durability and shielding
• Plug and play, no drivers required

In daily use

Mount the adapter using its standard D-type screw holes and connect a Mini DisplayPort cable on one side and a DisplayPort cable on the other. It maintains full signal integrity for professional AV, studio, and broadcast setups, including multi-channel audio and G-Sync/FreeSync pass-through.

Full specifications

• Connector 1: Mini DisplayPort Female
• Connector 2: DisplayPort Female
• Adapter type: Video Adapter, Passive
• Form factor: D-Type Panel Mount
• Housing material: Metal (Nickel-plated)
• Colour: Silver
• DisplayPort standard: 1.4 (backward compatible)
• Maximum resolution: 8K (7680x4320) @ 60Hz or 4K (3840x2160) @ 120Hz
• Maximum bandwidth: 32.4 Gbps (HBR3)
• Audio support: Multi-channel digital audio
• HDCP support: HDCP 2.2 and earlier
• HDR support: Yes
• DSC support: Yes
• G-Sync/FreeSync support: Pass-through
• Plug & Play: Yes
• Mounting holes: Standard D-Type (2x M3 screw holes)
• Gender: Female to Female

Final note

Designed for professional integration where a clean, secure panel-mount connection is required.
