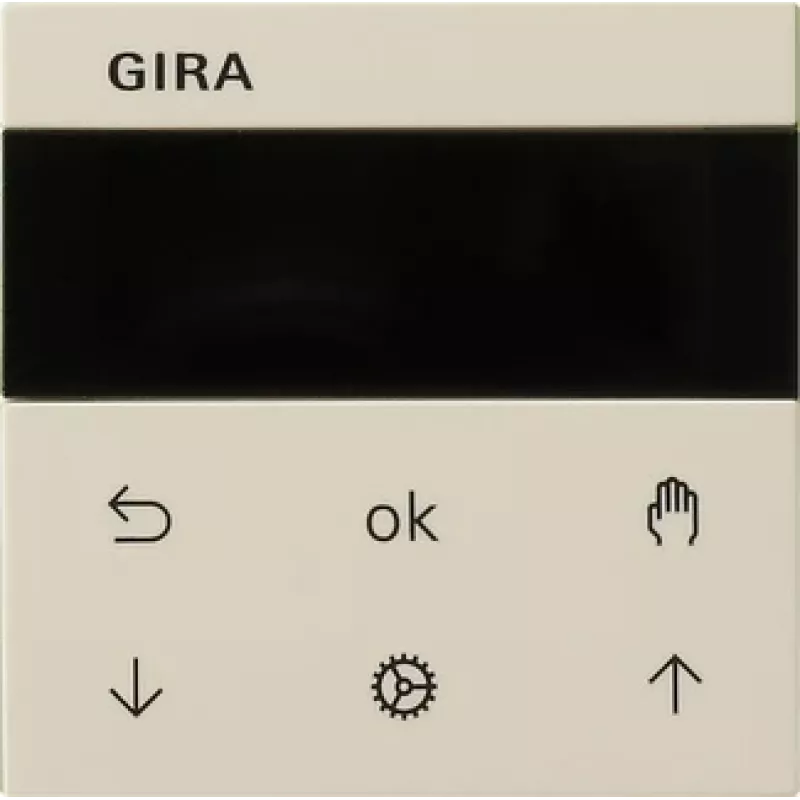

Gira System 3000 blind and timer display attachment 536601

The Gira System 3000 display top unit combines blind/shutter control with a universal timer switch in one flush-mounted device. It features a graphic LCD with backlight, astro function for automatic sunrise/sunset calculation, and a holiday function for presence simulation.

Highlights

• Graphic LCD with backlight for clear menu navigation
• Astro function automatically adjusts to sunrise and sunset times
• Holiday function for programmable absence periods
• Random function for presence simulation
• Power failure safe memory retention

In daily use

The display top unit snaps onto a Gira System 3000 blind or switch control unit. Use the push buttons to program daily, weekly, or block schedules (Mon-Fri, Sat-Sun, Mon-Sun). The internal clock with power reserve keeps time even during power outages.

Full specifications

• System compatibility: Gira System 3000
• Product type: Operating top unit (display)
• Functionality: Blind/shutter control, universal timer switch
• Display type: Graphic LCD with backlight
• Operating modes: Manual, automatic, astro, random, holiday
• Programming options: Daily, weekly, block programming (Mon-Fri, Sat-Sun, Mon-Sun)
• Astro function: Automatic sunrise/sunset calculation
• Random function: Presence simulation
• Holiday function: Programmable absence period
• Blockade function: Manual lockout for central control
• Memory retention: Power failure safe (retains settings)
• Time base: Internal clock with power reserve
• Installation type: Flush-mounted (requires Gira System 3000 control unit)
• Control elements: Push buttons for menu navigation and programming
• Compatibility with control units: Gira System 3000 Jalousie-Steuereinsatz, Gira System 3000 Schalt-Steuereinsatz
• Number of channels: 1
• Power supply: Via connected System 3000 control unit
• Material: Thermoplastic
• Mounting: Snap-on mounting onto System 3000 control unit
• Design line compatibility: Gira System 55, E2, Event, Esprit, ClassiX, S-Color (with appropriate frames)

Final note

This top unit requires a compatible Gira System 3000 control unit (not included) and a suitable frame from one of the listed design lines.
