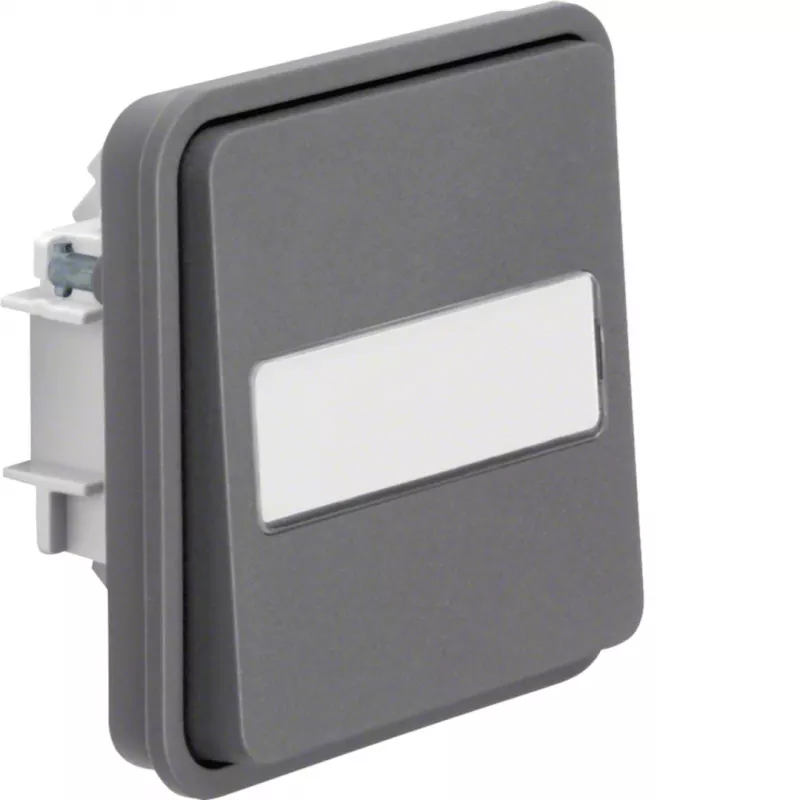

Hager Push-Button Insert WNA026

Electricians and installers use the Hager WNA026 push-button mechanism for momentary switching in residential and commercial installations. It fits flush-mounted boxes and is compatible with Hager switch ranges such as Kallysto and Systo.

Key specifications

• Function: momentary contact (push-button)
• Contact configuration: 1-pole, normally open (1 NO)
• Rated current: 10 A
• Rated voltage: 250 V AC
• Connection: screw terminals
• Terminal capacity (rigid): 1.5 - 2.5 mm²
• Mounting: flush-mounted, 1-module
• Material: thermoplastic, halogen-free
• Operating temperature: -5 to 40 °C

Why choose it

The WNA026 is a reliable push-button insert for controlling lighting or other loads with a momentary action. Its compact 1-module design and screw terminals make installation straightforward in standard flush boxes.

Ideal use cases

• Momentary switching of lighting circuits
• Integration with Hager Kallysto or Systo switch ranges
• Flush-mounted installations in residential or commercial buildings

Good to know

The mechanism has a degree of protection IP20 and is halogen-free. It does not include an indicator light.
