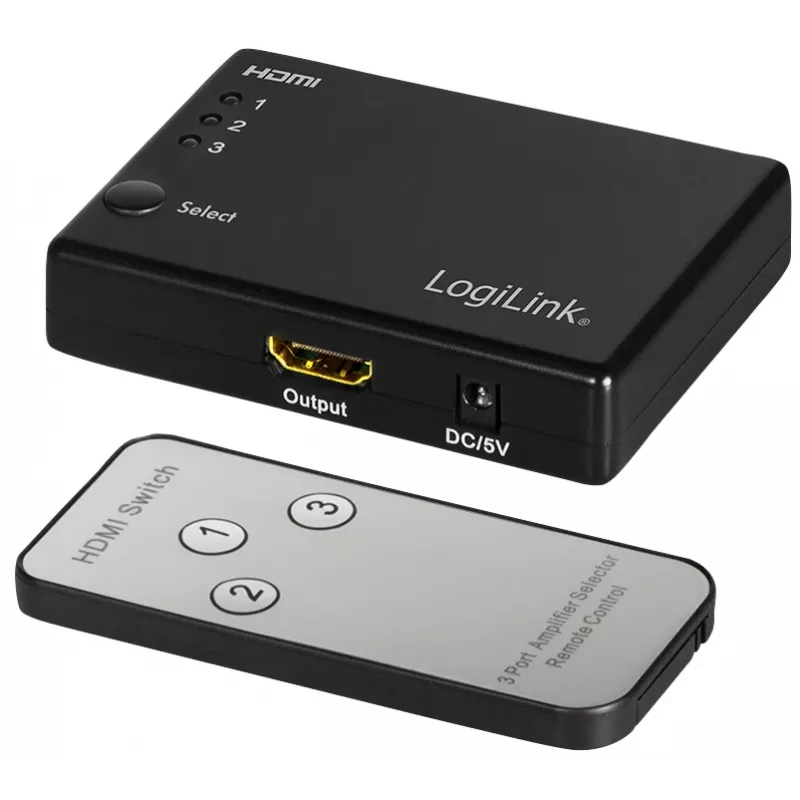

HDMI Video Switch LogiLink HD0042

The LogiLink Full HD HDMI switch (model HD0042) enables switching between three HDMI input sources — for example a video camera, DVD/Blu-ray player, game console or streaming box — without reconnecting cables. Switching can be performed with the included remote control, via intelligent automatic detection or by using the button on the unit. The device supports Full HD (1080p/60 Hz), HDCP pass-through, CEC and 3D, and transmits multi-channel audio formats including LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD. The switch is housed in a compact ABS enclosure with an integrated IR sensor for remote operation and consumes up to 5 W of power.

Advantages

The switch eliminates the need to plug and unplug HDMI cables when changing sources and supports clear Full HD video at 60 Hz. It offers flexible control options (remote, automatic detection or on-device button) and wide audio format compatibility for multi-channel home theater setups. Its compact black ABS housing and low weight make it easy to position near a TV or AV rack.

Suitable for

• Home cinema systems
• Connecting multiple media players to a single TV
• Gaming consoles with frequent source switching
• Conference rooms or streaming setups requiring several HDMI inputs

Key specifications

• Supported resolution: Full HD 1080p at 60 Hz
• Inputs: 3 × HDMI
• Audio formats: LPCM 7.1, DTS, Dolby Digital, DTS‑HD Master Audio, Dolby TrueHD
• Supported features: HDCP pass-through, CEC, 3D
• Material: ABS
• Colour: Black
• Dimensions (W×D×H): 58 × 80 × 18 mm
• Weight: 0.054 kg
• Power consumption: up to 5 W
• Control: IR remote, automatic detection, onboard switch

How to use

Connect up to three HDMI source devices to the switch’s HDMI input ports and connect the switch’s HDMI output to your display. Power the unit and use the remote control, the automatic input detection or the button on the device to select the active source. Ensure connected devices and the display support the chosen video and audio formats for correct passthrough of HDCP, CEC and multichannel audio.

Recommendations

Place the switch close to your display or AV equipment to keep HDMI cable lengths short for best signal quality, and use certified high-speed HDMI cables when transmitting Full HD and multi-channel audio formats.
