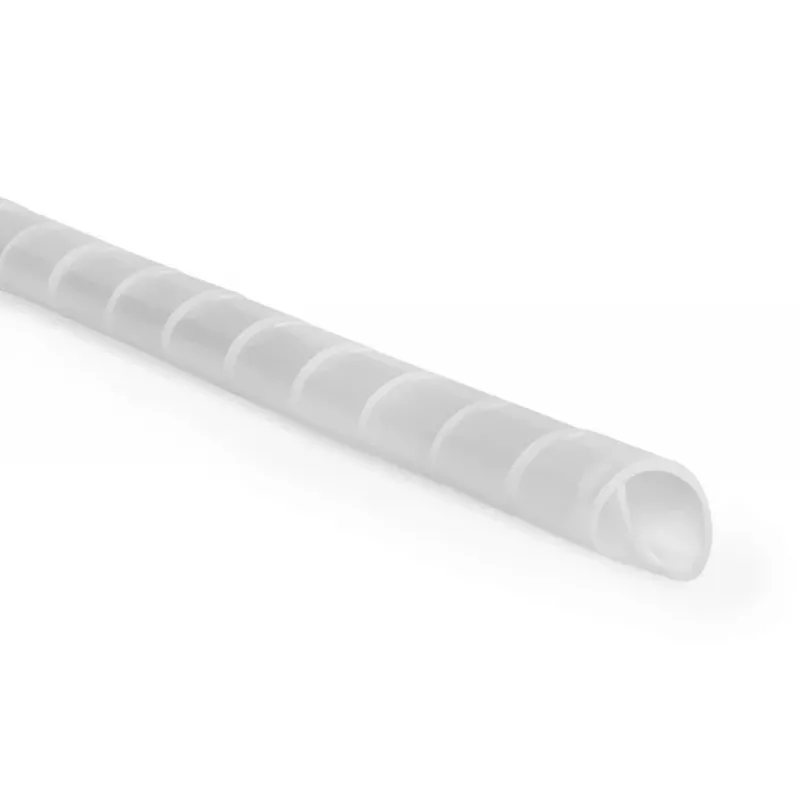

HellermannTyton 161-41300 Spiral Wrap, Transparent, Polyethylene, 25 m

This spiral wrap provides a reusable and halogen-free solution for bundling and protecting cables, made from transparent polyethylene for clear visibility of the bundle. Unlike rigid sleeving, it can be installed after connectors are attached and removed without tools, making it ideal for maintenance and rework.

Highlights

• Material: Polyethylene (PE)
• Colour: Transparent
• Length: 25 m
• Operating temperature: -60 °C to 80 °C
• Halogen-free
• Reusable

In daily use

The spiral wrap accommodates bundle diameters from 18 mm to 100 mm, with an outer diameter of 20 mm and wall thickness of 1.5 mm. It is suitable for cable bundling, protection, and insulation in industrial and electrical installations.

Full specifications

• Product type: Spiral wrap
• Material: Polyethylene (PE)
• Colour: Transparent
• Outer diameter: 20 mm
• Inner diameter: 17 mm
• Wall thickness: 1.5 mm
• Length: 25 m
• Minimum bundle diameter: 18 mm
• Maximum bundle diameter: 100 mm
• Operating temperature (min): -60 °C
• Operating temperature (max): 80 °C
• Flammability rating: UL94 HB
• Halogen-free: Yes
• UV resistant: No
• RoHS compliant: Yes
• REACH compliant: Yes
• Application: Cable bundling, protection, insulation
• Reusable: Yes

Final note

Transparent spiral wrap for flexible cable management in demanding temperature environments.
