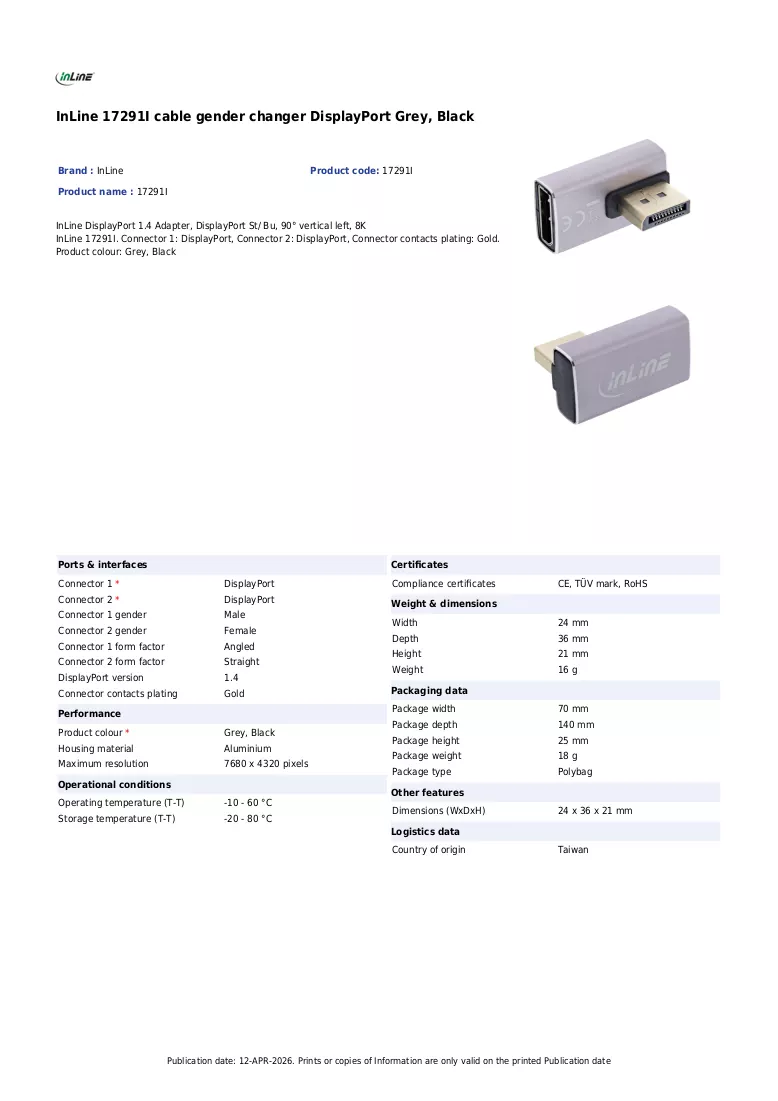

InLine 17291I DisplayPort Switch Grey Black Gold-Plated

The InLine DisplayPort 1.4 adapter (male–female, 90° vertical left) provides a space-saving connection for high-resolution displays. Supporting up to 8K UHD, this compact DisplayPort gender changer with gold-plated contacts ensures reliable signal transfer between DisplayPort devices and fits into tight spaces without stressing cables or ports.

Advantages

The adapter features gold-plated contacts for improved conductivity and corrosion resistance. Its 90° vertical left orientation reduces cable bending and helps maintain a tidy installation in confined setups. The grey and black housing offers a discreet, professional appearance while the robust construction is intended for long-term use.

Suitable for

• Connecting two DisplayPort cables or devices where gender conversion is needed
• Installing displays in tight spaces or behind furniture where a straight connector would not fit
• Professional workstations and AV installations requiring up to 8K UHD resolution

Key specifications

• Connector 1: DisplayPort (male)
• Connector 2: DisplayPort (female)
• Standard: DisplayPort 1.4
• Maximum supported resolution: up to 8K UHD
• Contacts: gold plated
• Orientation: 90° vertical left
• Colour: grey, black
• Weight: 0.016 kg
• Brand / MPN: InLine / 17291I
• EAN: 4043718338177

How to use

Insert the DisplayPort male connector of the adapter into the source or display port, then connect a DisplayPort cable or device to the female side. Ensure both connected devices are powered off when plugging or unplugging to avoid signal issues. The 90° vertical left orientation should be aligned to match the available clearance behind the device.

Recommendations

For optimal performance, use high-quality DisplayPort cables compatible with DisplayPort 1.4 and check that connected devices and cables support the desired resolution (up to 8K UHD). Avoid excessive twisting or pulling on cables and confirm a secure seating of the connectors after installation.
