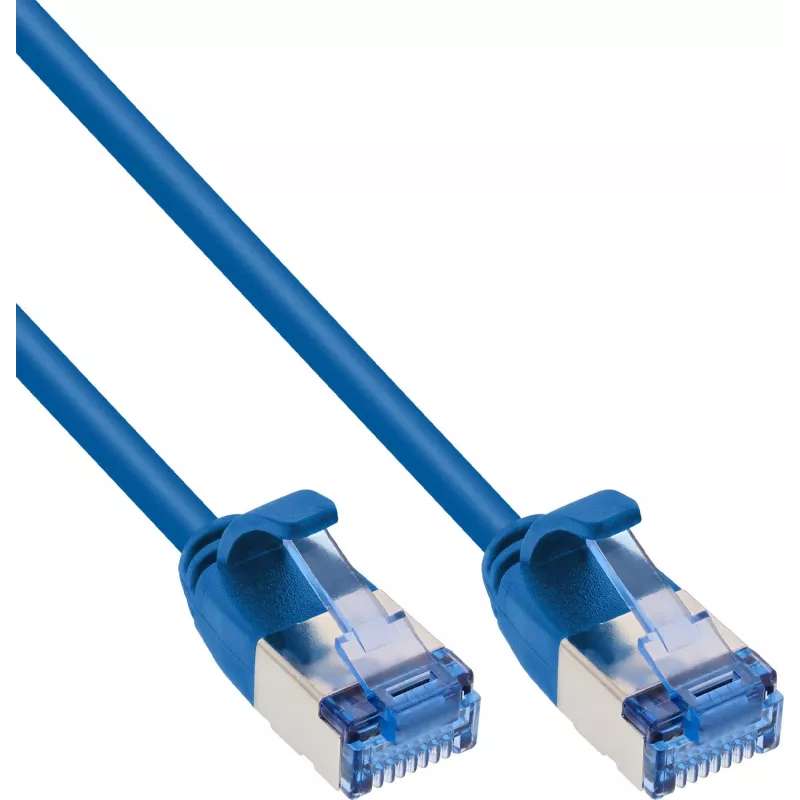

InLine® Slim Patch Cable, U/FTP PiMf, Cat.6A, Blue, 3 m

Network congestion and interference can cripple high-speed data transfers, but this slim Cat.6A patch cable eliminates bottlenecks with shielded twisted pairs and a compact design. Ideal for dense server racks, patch panels, and high-performance workstations, it delivers reliable 10 Gigabit Ethernet connectivity up to 500 MHz. The blue LSZH jacket ensures safety in plenum spaces, while the snagless boot protects the locking tab during frequent reconnections.

Who is it for

IT professionals, network administrators, and tech-savvy users who need dependable, high-speed connections in space-constrained environments. Perfect for data centers, offices, and home networks where airflow and cable management are critical.

Main features

• Cat.6A performance: Supports 10GBASE-T up to 500 MHz for future-proof networking.
• U/FTP shielding: Each twisted pair is individually foiled (PiMf) to reduce crosstalk and EMI.
• Slim 4.2 mm diameter: Improves airflow and saves space in high-density installations.
• LSZH jacket: Low smoke zero halogen for enhanced fire safety.
• Snagless boot: Protects RJ45 connectors from damage during installation.
• Stranded copper conductors (AWG 28/7): Flexible and durable for frequent moves.

Specifications

• Cable type: Slim Ethernet patch cable
• Category: Cat.6A
• Shielding: U/FTP (PiMf)
• Length: 3 m
• Colour: Blue
• Connectors: RJ45 male to RJ45 male
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor: Copper, AWG 28/7 stranded
• Jacket material: LSZH
• Outer diameter: 4.2 mm
• Wiring standard: TIA/EIA 568B
• Compliance: RoHS, CE

Tips

For best performance, avoid sharp bends and keep the cable away from power lines. Use with Cat.6A compatible hardware to achieve full 10G speeds. The slim profile is ideal for high-density patch panels where space is limited.
