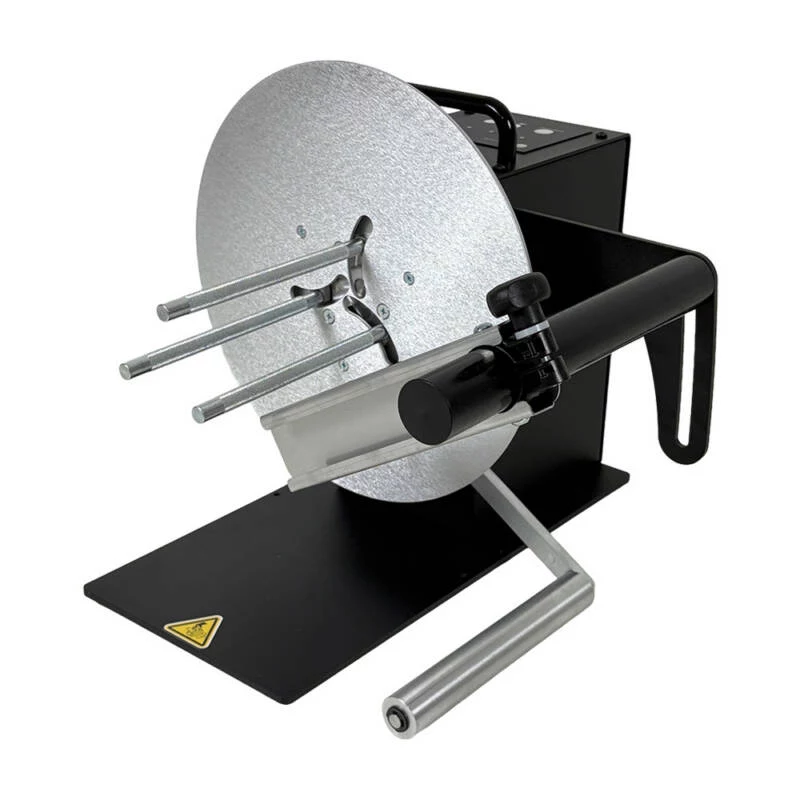

Labelmate UNI-CAT-ACH

Label rewinders often become the bottleneck in high-volume printing operations, forcing operators to stop and manually rewind rolls or risk damaging labels. The LABELMATE UNI-CAT-ACH eliminates this inefficiency by automatically rewinding labels as they come off the printer, keeping production moving smoothly and labels perfectly rolled for immediate use.

Who is it for

This rewinder is built for warehouses, logistics centers, and manufacturing facilities that use label printers for shipping, barcoding, or product identification. It suits any environment where continuous label output is required, from small batch runs to round-the-clock operations.

Main features

• Adjustable core holder accommodates cores from 25 mm to 101 mm (1–4 inches), making it compatible with a wide range of label roll sizes.
• Bi-directional rewind/unwind capability allows the unit to be used for rewinding printed labels or unwinding pre-printed rolls for further processing.
• Variable speed control up to 125 cm/sec (50 ips) lets you match the rewinder speed to your printer output for seamless operation.
• Dancer arm tension control ensures consistent, even winding without stretching or wrinkling labels.
• Heavy-duty steel construction and direct drive motor provide durability and reliable performance in demanding environments.
• Universal compatibility with most label printers, including Zebra, Datamax, Intermec, Sato, and others.

Specifications

• Max roll diameter: 220 mm (8.66 inches)
• Max roll width: 155 mm (6 inches)
• Core size range: 25–101 mm (1–4 inches)
• Rewind speed: up to 125 cm/sec (50 ips)
• Motor type: constant adjustable torque
• Direction: bi-directional (rewind/unwind)
• Tension control: dancer arm
• Power supply input: 100–240 VAC, 50/60 Hz
• Power supply output: 15 VDC
• Construction: heavy-duty steel
• Drive system: direct drive
• Mounting: tabletop
• Max roll weight capacity: 4.5 kg (10 lbs)
• Operation: automatic label rewinding
• Warranty: 5-year limited (excluding power supply)

Tips

For best results, position the rewinder directly in line with your printer's output and adjust the speed to slightly exceed the printer's output rate. This prevents label slack and ensures tight, even rolls. The adjustable core holder can be set to match the core size of your take-up roll, so you can reuse cores from spent label rolls and reduce waste.
