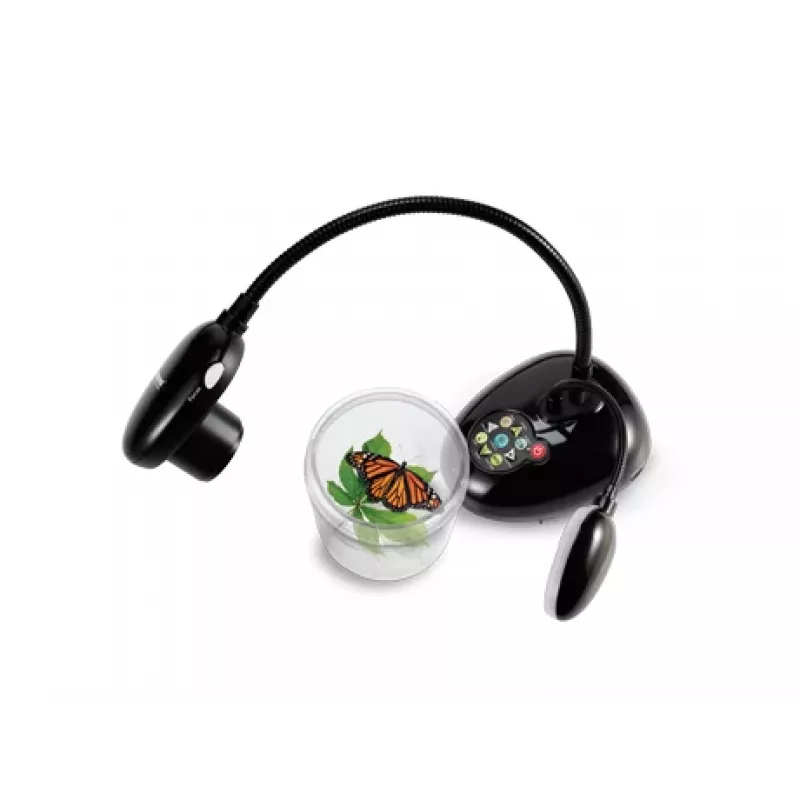

Lumens PC193 Digital Document Camera - Colour

In classrooms and meeting rooms, presenting physical documents, textbooks, or 3D objects to a remote audience or a large screen can be a challenge. The Lumens PC193 Digital Document Camera solves this by delivering crisp, high-definition live video of any material placed under its lens. With a 12x optical zoom and 8x digital zoom, it captures fine details on A3-sized documents, making it ideal for education, corporate training, and telemedicine.

Who is it for

Educators who need to display textbook pages, science experiments, or student work to the whole class. Business professionals conducting video conferences or webinars that require showing physical documents, prototypes, or products. Medical professionals who need to share detailed images of specimens or documents in teleconsultations.

Main features

• 3.2 Megapixel CMOS sensor with 1080p output resolution for sharp, clear images.
• 12x optical zoom plus 8x digital zoom for a total of 96x magnification, perfect for close-up details.
• Large A3 shooting area (400 x 300 mm) to capture entire documents or large objects.
• Versatile connectivity: HDMI, VGA, USB 2.0, RS-232, and audio in/out for integration with any AV setup.
• Built-in LED lamp and microphone for well-lit, audible presentations without extra equipment.
• Auto and manual focus, white balance, and image effects like freeze, mirror, rotate, and split screen.
• Control via on-board buttons, remote control, or PC software for flexible operation.
• Kensington lock port for physical security in shared environments.

Specifications

• Sensor: 1/3" CMOS, 3.2 Megapixels (2048 x 1536)
• Optical Zoom: 12x, Digital Zoom: 8x, Total Zoom: 96x
• Max Frame Rate: 30 fps
• Output Resolution: Up to 1080p (1920x1080)
• Focus: Auto / Manual
• Connectivity: HDMI, VGA In/Out, USB 2.0 Type B, RS-232, Audio In/Out
• Built-in Light: LED Lamp
• Built-in Microphone: Yes
• Image Rotation: 0° / 90° / 180° / 270°
• Image Effects: Color, B&W, Freeze, Mirror, Rotate, Split
• White Balance: Auto / Manual
• Power Supply: AC 100-240V, 50/60Hz
• Control Interface: On-board buttons, Remote control, PC software
• Security: Kensington Lock Port

Tips

For best results, position the camera on a stable surface and use the LED lamp in low-light conditions. The 12x optical zoom is ideal for capturing small text or intricate details without losing clarity. Connect via HDMI to a projector or monitor for instant display, or use USB to integrate with video conferencing software for remote sharing.
