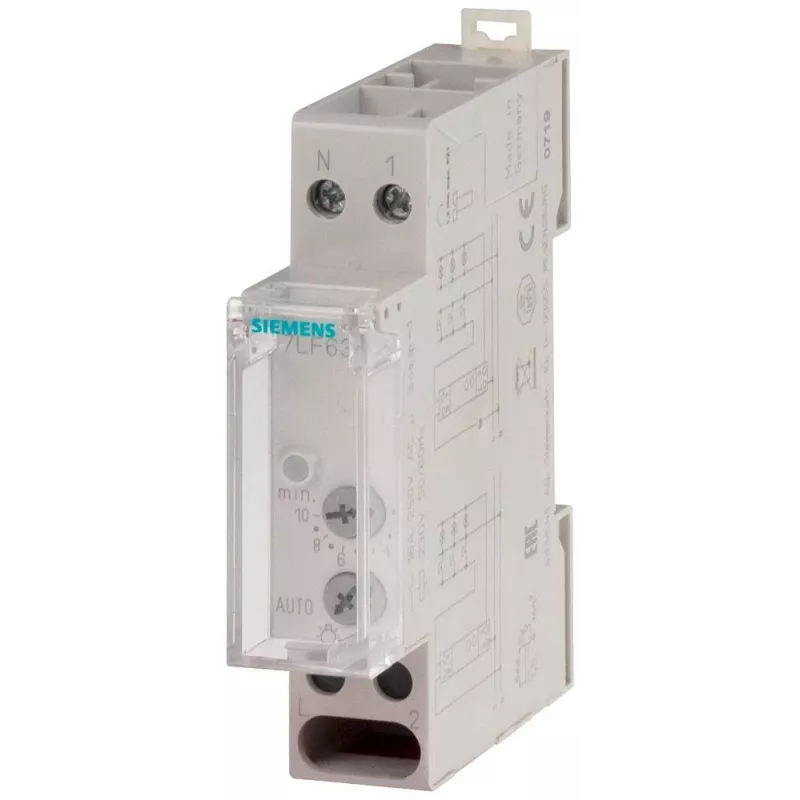

SIEMENS Staircase Light Timer 7LF6310

Staircase lighting often stays on longer than needed, wasting energy and increasing costs. The SIEMENS 7LF6310 staircase light timer switch automatically turns off lighting after an adjustable period, ensuring lights are only on when necessary.

Who is it for

This timer is ideal for building managers, electricians, and homeowners who want to automate staircase, hallway, or corridor lighting in residential or commercial buildings. It is suitable for DIN rail mounting in distribution boards.

Main features

• Adjustable time setting from 0.5 to 10 minutes
• Manual override for continuous light function
• External pushbutton control input
• 1 normally open (NO) contact for switching lighting loads
• Supports incandescent, halogen, fluorescent, and LED lamps
• Compact 1 module width (17.5 mm) for DIN rail mounting

Specifications

• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Maximum switching current: 16 A
• Incandescent lamp load: 2300 W
• Halogen lamp load: 2300 W
• Fluorescent lamp load (uncompensated): 2300 VA
• Fluorescent lamp load (compensated): 1000 VA
• LED lamp load: 400 W
• Power consumption: approx. 1 W
• Protection class: IP20
• Operating temperature: -10 to +50 °C
• Connection type: screw terminals

Tips

For best results, install this timer in a distribution board on a DIN rail and connect the external pushbutton to the control input. Adjust the time setting to match the typical usage of the staircase to maximize energy savings.
