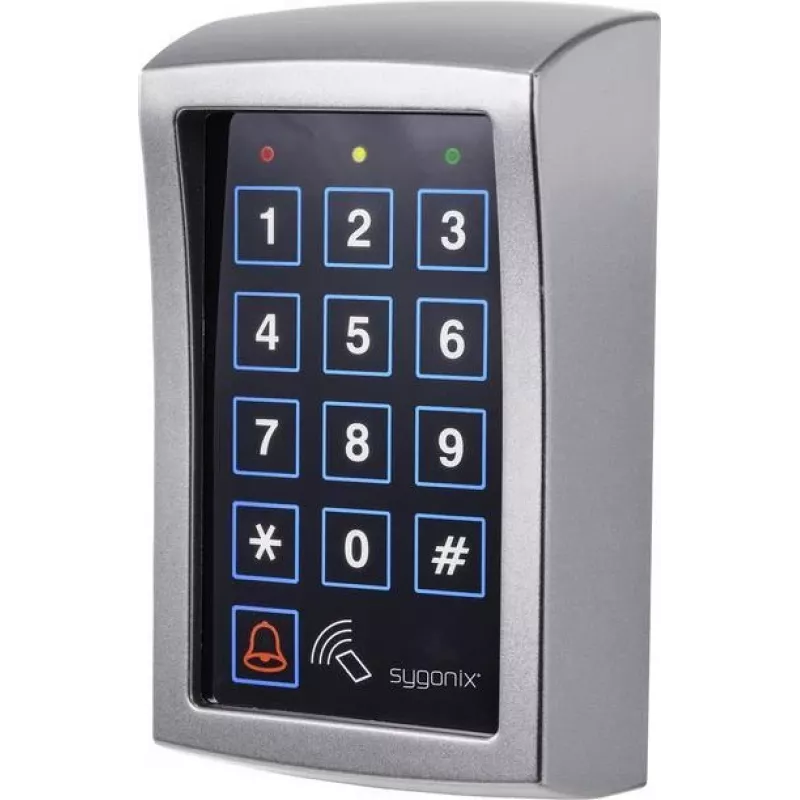

Sygonix SY-4730012 Surface-Mounted Code Lock 12 V/DC IP55

This Sygonix code lock stands out with its 1000-user capacity and backlit keypad, making it suitable for shared entrances where multiple access codes are required. The surface-mounted design and IP55 rating allow installation in both indoor and outdoor locations.

Highlights

• 1000 user codes for flexible access management
• Backlit keypad for use in low-light conditions
• IP55 protection against dust and water jets
• Potential-free relay output (NO/NC) for door strike integration
• Doorbell function with separate output

In daily use

The keypad provides tactile feedback and the backlight ensures visibility at night. Administrators can set the door opening time from 1 to 99 seconds or toggle mode. A tamper alarm and door-open-too-long alert enhance security. The unit operates on 12 V/DC with low standby current.

Full specifications

• Operating voltage: 12 V/DC
• Standby current: 20 mA
• Active current: 80 mA
• Relay contact rating: 3 A / 12 V DC
• Housing material: ABS plastic
• Operating temperature: -20 °C to +50 °C
• Operating humidity: 10% to 90% RH (non-condensing)
• Number of users: 1000
• IP code: IP55
• Keypad integrated: Yes
• Backlight: Yes
• Buzzer: Yes
• Alarm function: Yes
• Active tampering alarm: Yes
• Type: Basic Access Control Reader
• Authentication type: Code

Final note

With its high user capacity and robust construction, this code lock is a practical choice for offices, residential buildings, and utility rooms.
