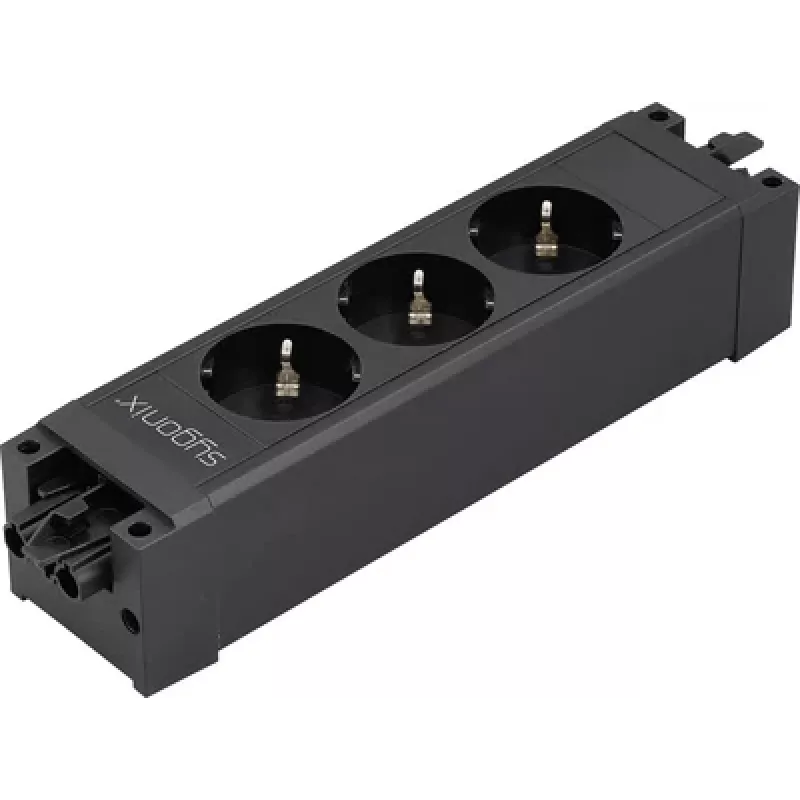

Sygonix SY-6872234 3-Way socket module without switch black

The Sygonix SY-6872234 is a compact 3-way socket module that expands a single power feed into three Schuko outlets without adding a switch. Its modular Wieland GST18i3 connection makes it ideal for integrated installations where a fixed, switch-free power distribution point is needed.

Highlights

• Three Schuko sockets in one module
• No integrated switch for uninterrupted power
• Wieland GST18i3 input/output for modular wiring
• Black plastic housing blends into furniture and workstations

In daily use

Mount the module into a desk grommet, cable duct, or surface-mount box and connect it via a GST18i3 feed. Each of the three sockets delivers up to 16 A at 230 V, enough for a total load of 3680 W. Because there is no switch, connected devices stay powered as long as the upstream circuit is live.

Full specifications

• AC outlets quantity: 3
• Socket type: Schuko (Type F)
• Integrated switch: No
• Input voltage: 230 V AC
• Maximum current: 16 A
• Maximum power output: 3680 W
• Frequency: 50/60 Hz
• Housing material: Plastic (PC/ABS)
• Mounting type: Integrated / Surface mount
• Connection type: Wieland GST18i3 (input/output)
• Cable included: No
• Application: Indoor use
• Operating temperature: 0 - 40 °C

Final note

A straightforward, switch-free power distribution module for permanent installations where three Schuko outlets are needed from a single GST18i3 feed.
