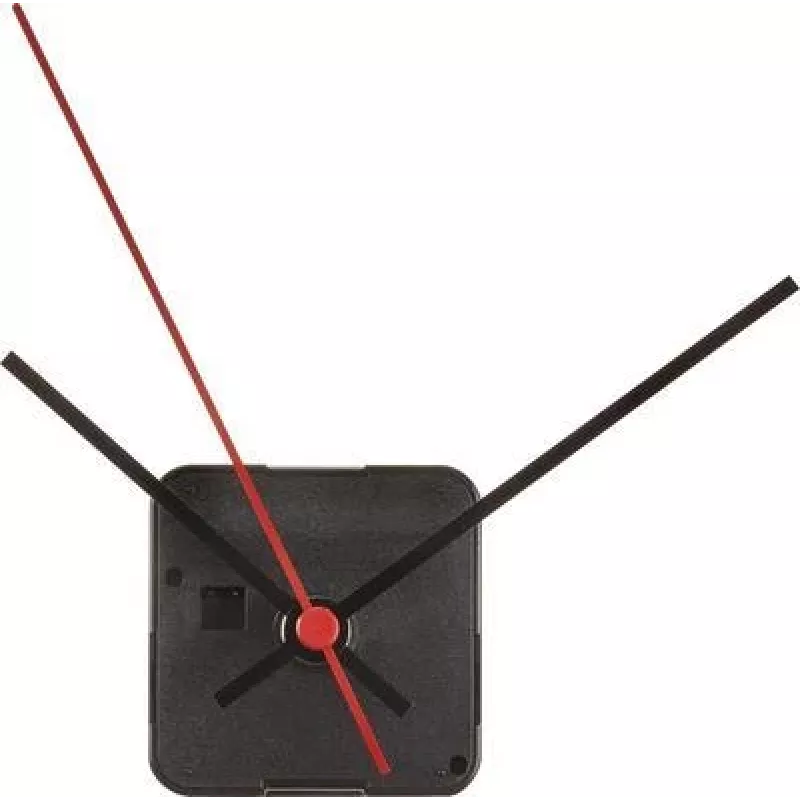

TFA Dostmann 60.3060.01 Quartz Clock Movement, Clockwise

Quartz clock movement with right-hand rotation, engineered for reliable timekeeping in DIY clock projects and repairs. Its precise quartz drive provides consistent accuracy, while the central screw fixing allows secure mounting in clock faces up to 3 mm thick.

Advantages

High-precision quartz frequency of 32.768 kHz ensures dependable timekeeping. The movement operates on a single AA battery with approximately one year of battery life, minimizing maintenance. Included central nut, washer, and rubber washer simplify installation.

Suitable for

• Replacing worn movements in existing clocks
• Building custom clocks with dials up to 3 mm thickness
• Craft projects requiring a reliable quartz drive

Key specifications

• Movement type: Quartz
• Rotation direction: Right-hand (clockwise)
• Total shaft length: 13.5 mm
• Threaded shaft length: 5.5 mm
• Max. dial thickness: 3 mm
• Power source: 1x AA battery (1.5 V)
• Battery life: approx. 1 year
• Minute hand hole: oval, approx. 3.5 x 2.8 mm
• Hour hand hole: round, approx. 5.0 mm
• Second hand pin diameter: 0.75 mm
• Movement body dimensions: 56 x 56 x 16 mm
• Mounting type: Central screw fixing
• Material: Plastic housing, metal shaft

Recommendations

For best results, ensure the clock face thickness does not exceed 3 mm and use the included washers to secure the movement without overtightening.
