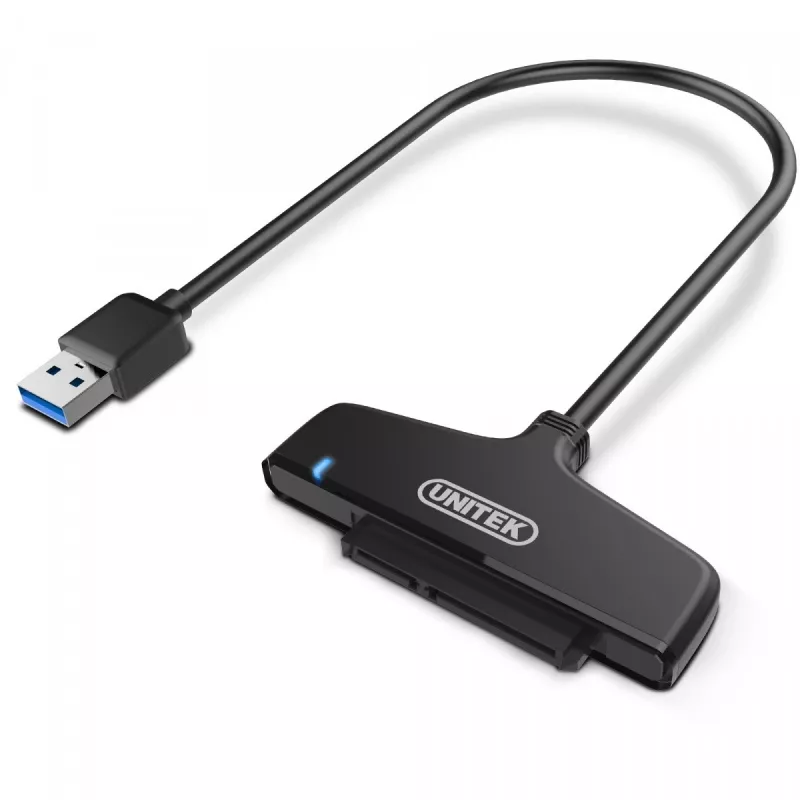

UNITEK Y-1096 interface card

The UNITEK Y-1096 is a compact SATA interface card that connects SATA devices via a USB Type-A host interface. Designed for simple integration, it offers a maximum data transfer rate of 5 Gbit/s and a compact footprint measuring 71 mm × 41 mm × 9 mm. The card is finished in black and is supplied in a protective box for transport and storage.

Advantages

The device provides a straightforward USB Type-A to SATA connection without internal mounting requirements, enabling quick attachment of SATA drives to compatible hosts. Its small dimensions reduce space requirements in setups where footprint is limited, and the 5 Gbit/s transfer capability supports fast data movement for typical SATA storage tasks. The boxed packaging helps protect the unit during shipping.

Suitable for

• Connecting 2.5" or 3.5" SATA drives to systems with USB Type-A ports
• Data transfer, backup and cloning operations involving SATA drives
• Temporary drive access for diagnostics or file recovery

Key specifications

• Host interface: USB Type-A
• Output interface: SATA
• Maximum data transfer rate: 5 Gbit/s
• Dimensions (W × D × H): 71 mm × 41 mm × 9 mm
• Product colour: Black
• Packaging: Boxed

How to use

Connect the interface card to a host system using a compatible USB Type-A cable or port, then attach the SATA device to the card's SATA output. Ensure the host recognizes the connected drive in the operating system before transferring data. No internal installation is required; the card is intended for external connection and straightforward plug-and-play usage where supported by the host.

Recommendations

Use a USB Type-A port that supports the device’s transfer rate for optimal performance and ensure any connected SATA drive has adequate power if required by the drive type. Store the card in its box when not in use to protect it from dust and mechanical damage.
