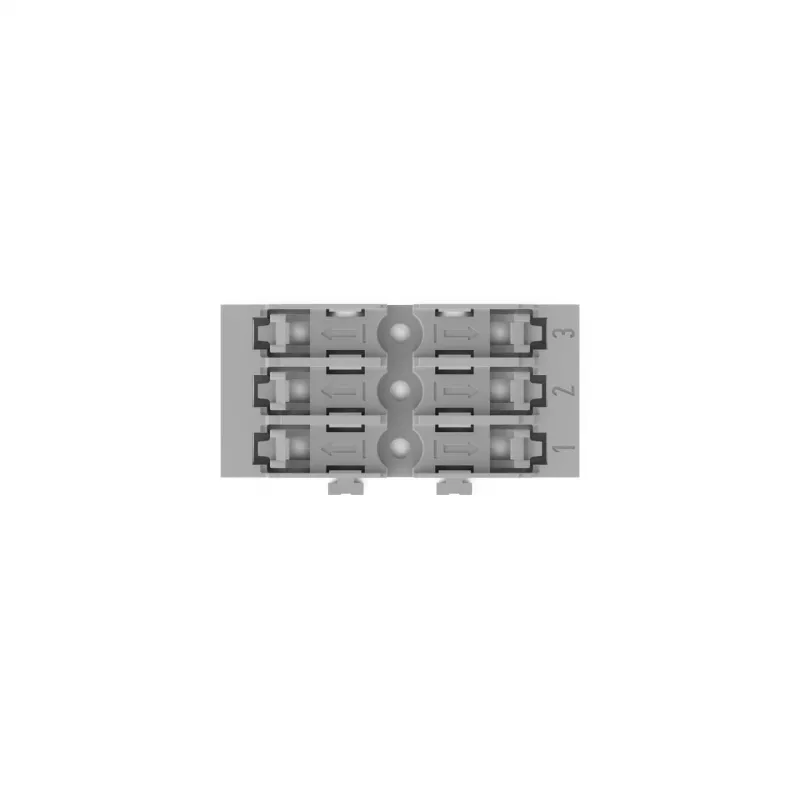

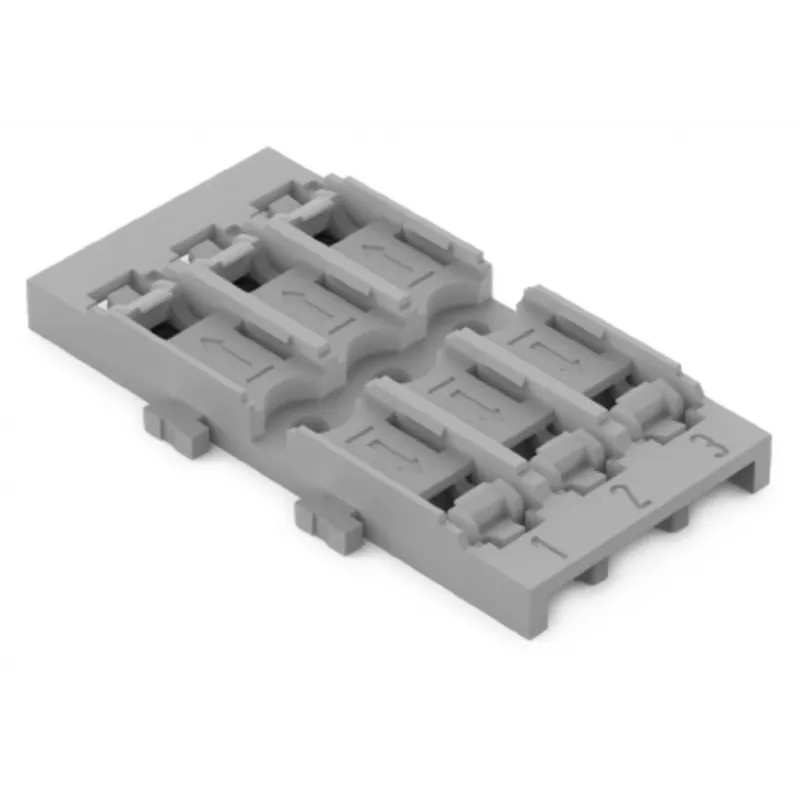

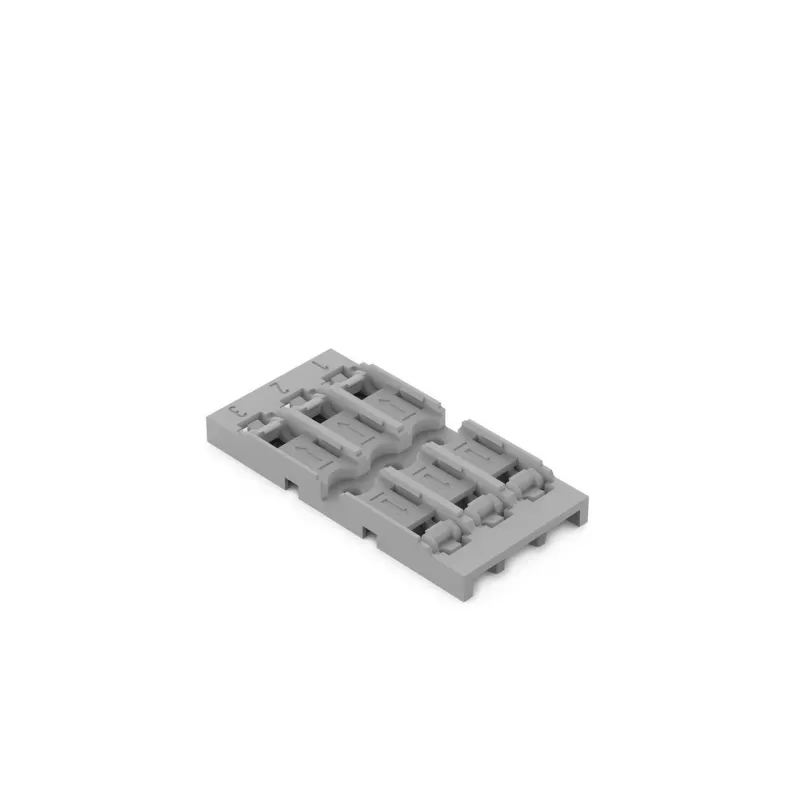

WAGO 221-2523 Mounting Adapter 5 pcs.

The WAGO 221-2523 Mounting Adapter is a practical accessory designed for secure mounting and strain relief of WAGO 221 Series connectors. This set includes 5 pieces, allowing for multiple installations. The adapter is made of durable Polyamide 66 (PA 66) in light gray, offering reliable performance in various environments.

Advantages

Provides secure mounting and strain relief for WAGO 221 Series connectors. Supports multiple mounting options: screw mounting, snap-in (with carrier), and adhesive mounting. Compact design with mounting hole spacing of 15 mm and hole diameter of 3.2 mm for M3 screws. Compliant with RoHS and REACH standards.

Suitable for

• Mounting WAGO 221 Series 2-conductor, 3-conductor, and 5-conductor connectors
• Industrial and commercial electrical installations
• Applications requiring secure connector fixation and strain relief

Key specifications

• Product Type: Mounting Adapter
• Compatible Connector Series: WAGO 221 Series
• Material: Polyamide 66 (PA 66)
• Color: Light Gray
• Operating Temperature Range: -27 °C to +105 °C
• Flammability Rating: UL 94 V-2
• Number of Adapters Included: 5 pieces
• Mounting Hole Diameter: 3.2 mm (for M3 screws)
• Mounting Hole Spacing: 15 mm
• Country of Origin: Germany

Recommendations

For optimal performance, use with WAGO 221 Series connectors. Ensure mounting surface is clean and suitable for chosen mounting method.
