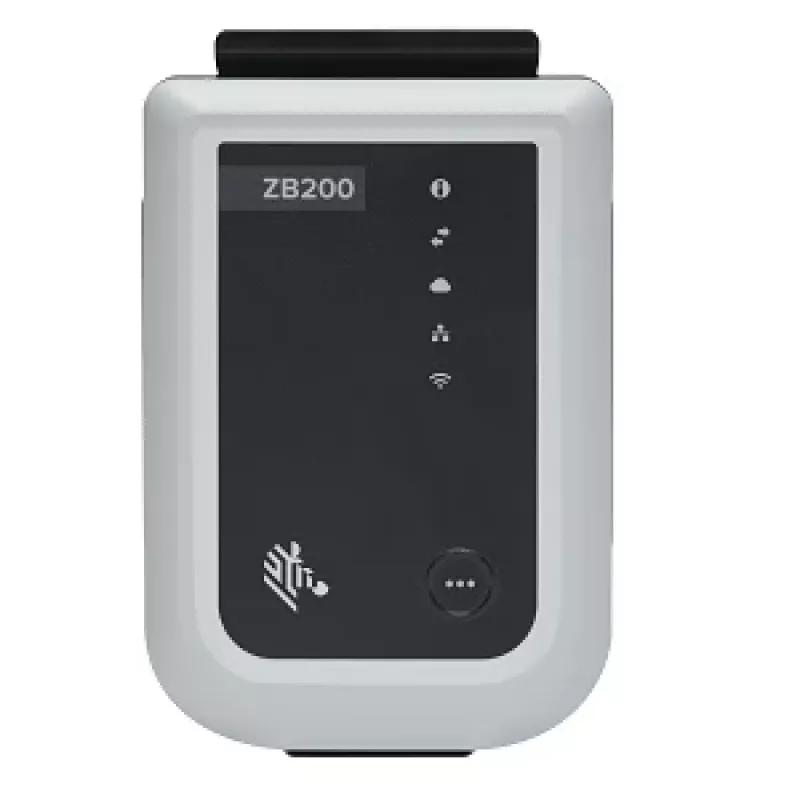

Zebra Bluetooth sensor bridge ZB200

In a busy warehouse, the Zebra ZB200-0E0 Bluetooth Sensor Bridge stands as a quiet workhorse, collecting data from wireless sensors and feeding it into your network over Ethernet or Wi-Fi. It bridges the gap between low-power Bluetooth devices and your central management platform, making it essential for real-time asset tracking and environmental monitoring.

Key specifications

• Dual-band Wi-Fi 5 (802.11ac) and Bluetooth 5.0 Low Energy for versatile wireless connectivity
• Gigabit Ethernet port for reliable wired backhaul
• Powered by Power over Ethernet (PoE 802.3af/at) or optional 12V DC
• NXP i.MX 6ULL dual-core processor with 512 MB RAM and 4 GB eMMC flash
• Runs Linux with secure boot and WPA2/WPA3 encryption
• Compact IP20-rated housing for indoor deployment
• Supports MQTT and HTTP/S protocols for seamless integration with Zebra Savanna IoT Platform

Why choose it

This bridge eliminates the complexity of connecting Bluetooth sensors to your existing infrastructure. With its robust security features and flexible mounting options, it ensures reliable data collection in challenging environments. The local web UI and SSH access simplify configuration, while the Zebra Savanna platform provides advanced analytics.

Ideal use cases

• Asset tracking in warehouses and distribution centers
• Environmental monitoring in cold storage or clean rooms
• Building automation and smart office deployments
• Industrial IoT applications requiring seamless sensor integration

Good to know

The ZB200-0E0 operates in temperatures from -20°C to 50°C, making it suitable for most indoor settings. It includes LED indicators for status, power, and network, and a USB-C port for console access. A quick start guide is included to get you up and running quickly.
