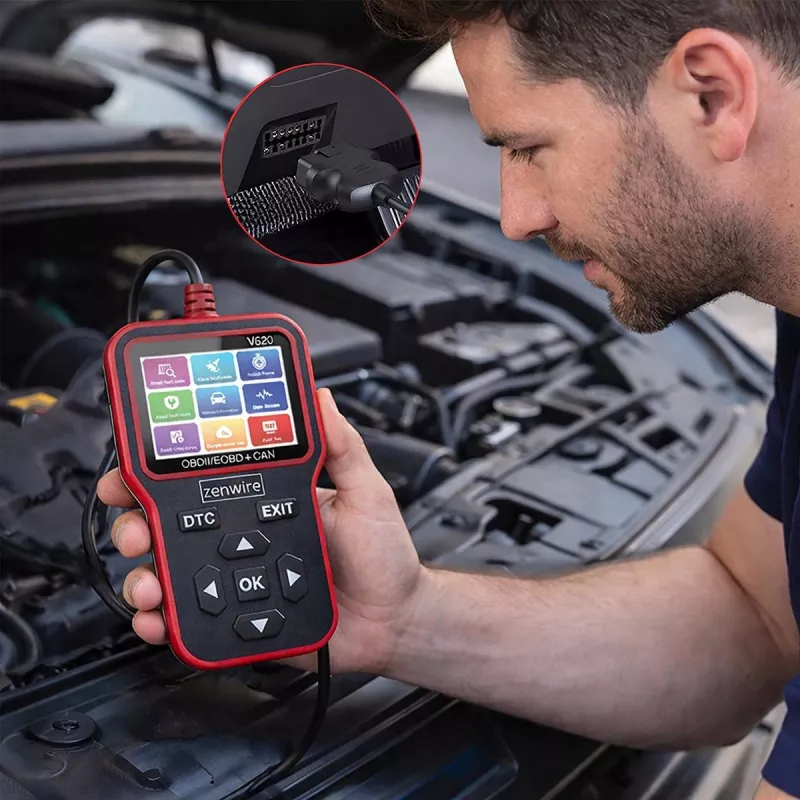

ZENWIRE V620 OBD2 ELM327 CAN interface diagnostic scanner

The ZENWIRE V620 is an OBD2 diagnostic interface and car tester. It connects via the OBD2 port and supports OBD2, EOBD and CAN compatible vehicles.

Key features

• Reads and clears DTC trouble codes
• Live Data viewing
• VIN reading and vehicle information
• Monitors parameters such as RPM, engine temperature, battery voltage, vehicle speed, throttle, lambda sensor and engine load
• 13 languages supported, including Polish, English, German, French, Spanish and Italian
• Physical function buttons
• ABS plastic housing
• Protection against short circuit, overload and overvoltage

Specifications

• Brand: Zenwire
• MPN: V620
• Device type: OBD2 diagnostic interface / car tester
• Connector type: standard 16-pin OBD2
• Power supply: directly from the OBD2 socket 12V (Plug & Play)
• Display: 2.8" colour IPS LCD
• Screen resolution: 320 × 240 px
• Connectivity: wired via OBD2 port
• Compatibility: OBD2 / EOBD / CAN compliant vehicles
• Operating temperature: -10°C to +60°C
• Dimensions: 135.4 × 88.8 × 24 mm
• Weight: 188 g
