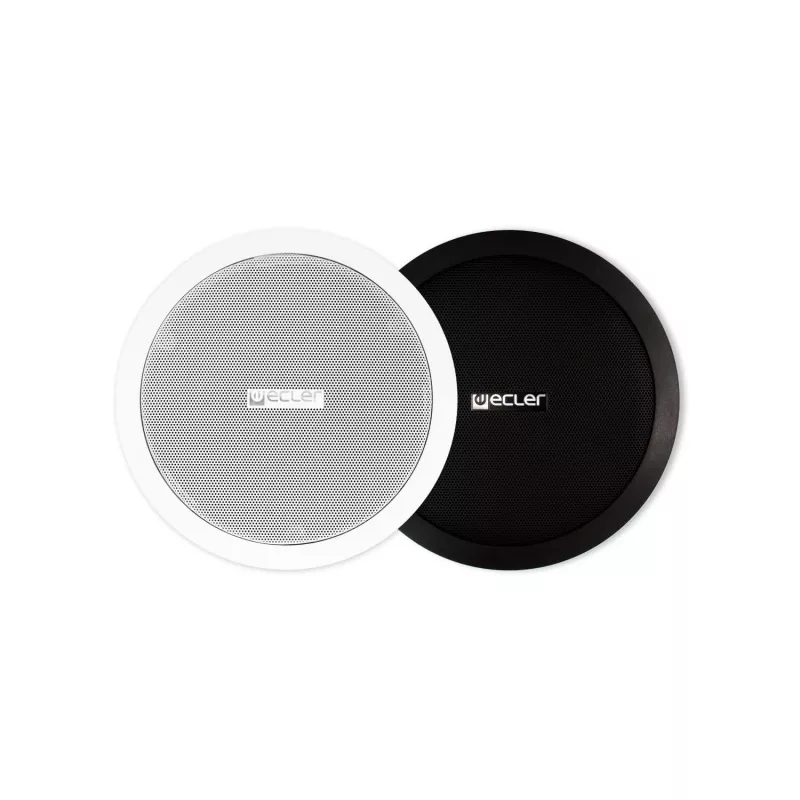

Kindermann Ecler IC3 Ceiling Speaker White

The Kindermann Ecler IC3 is a high-quality 2-way coaxial ceiling speaker designed for professional audio installations. With its compact 3-inch woofer and 0.5-inch tweeter, it delivers clear and balanced sound for background music and paging applications. The white ABS plastic enclosure and aluminum grille blend seamlessly into any ceiling, making it an ideal choice for commercial spaces such as offices, retail stores, hotels, and restaurants.

Advantages

Easy to install with a cutout diameter of only 90 mm and a mounting depth of 70 mm. The spring terminals ensure quick and secure wiring. The 130° conical dispersion provides wide coverage, reducing the number of speakers needed. The 10W RMS power handling is sufficient for most background music systems.

Suitable for

• Commercial background music systems
• Public address and paging systems
• Retail stores, offices, hotels, and restaurants
• Low-impedance 8 Ohm installations

Key specifications

• Speaker Type: 2-Way Coaxial
• Woofer Size: 3 inches
• Tweeter Size: 0.5 inches
• RMS Power: 10 W
• Program Power: 20 W
• Impedance: 8 Ohm
• Frequency Response (-10dB): 120 Hz - 20 kHz
• Sensitivity (1W/1m): 84 dB SPL
• Dispersion Angle: 130° Conical
• Mounting Type: Ceiling
• Cutout Diameter: 90 mm
• Outer Diameter: 105 mm
• Mounting Depth: 70 mm
• Color: White
• Enclosure Material: ABS Plastic
• Grille Material: Aluminum
• Connectors: Spring Terminals
• System Type: Low Impedance

Recommendations

For optimal performance, pair the IC3 with a suitable amplifier rated for 8 Ohm loads. Ensure proper ceiling support and use appropriate mounting hardware. The speaker is designed for indoor use only.
