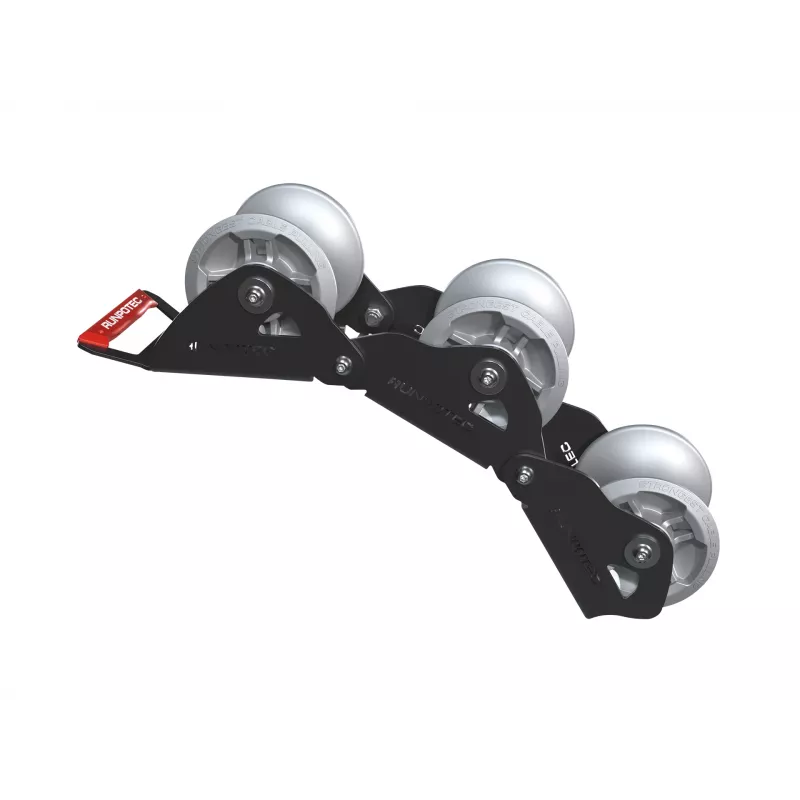

RUNPOTEC 10166 Cable Deflection Roller Chain - 3 Links

Equipped with three articulated links, this cable deflection roller chain guides cables smoothly around corners and over obstacles, reducing friction and protecting cable jackets during installation. Each roller features a high-quality polyamide body with ball bearings, ensuring low rolling resistance and long service life.

Overview

The RUNPOTEC 10166 is a 3-link cable deflection roller chain designed for professional cable pulling and installation tasks. Its galvanized steel chain links provide corrosion resistance and durability, while the polyamide rollers with ball bearings allow cables with a diameter up to 70 mm to glide effortlessly. The chain's multi-link design adapts to various routing paths, making it an essential accessory for challenging cable runs.

What stands out

• Three articulated links for flexible positioning around bends and obstacles
• Polyamide rollers with ball bearings minimize friction and protect cable sheathing
• Galvanized steel chain resists corrosion in demanding environments
• Supports cables up to 70 mm in diameter
• UV-resistant and impact-resistant construction for long-term reliability

Technical details

• Number of links: 3
• Roller diameter: 80 mm
• Max. cable diameter: 70 mm
• Chain material: galvanized steel
• Roller material: polyamide
• Bearing type: ball bearings
• Operating temperature: -20°C to +60°C
• Total length: 420 mm
• Width: 110 mm
• Height: 110 mm

Our verdict

A robust and versatile cable guiding solution for professional installers, the RUNPOTEC 10166 reduces pulling effort and cable wear, ensuring smooth installations even in tight or complex routing scenarios.
