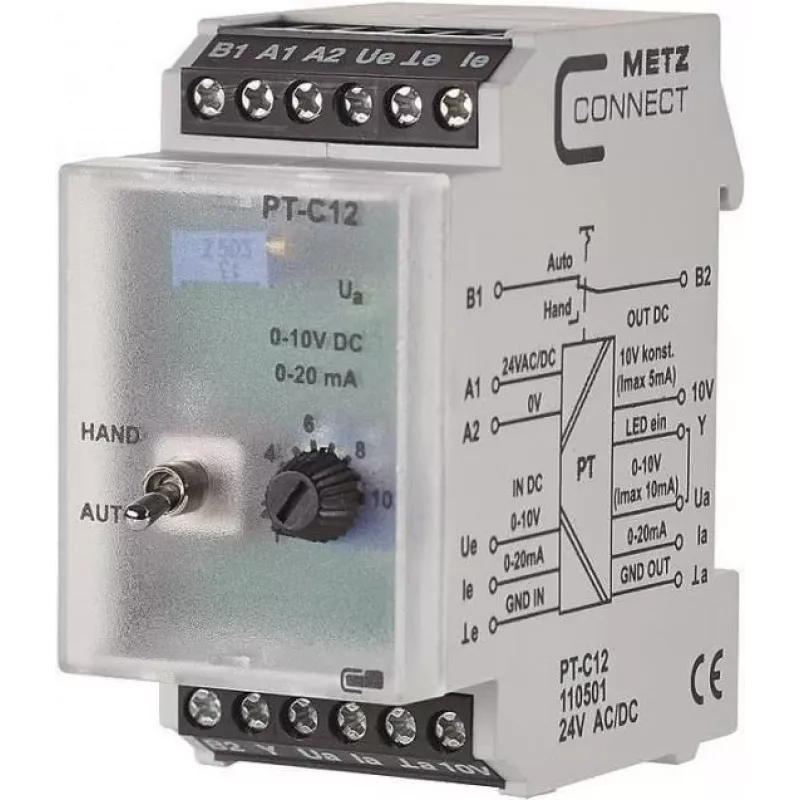

METZ CONNECT Potential Separator PT C12 24VAC/DC (110501)

The METZ CONNECT Potential Isolator PT C12 is a high-precision signal isolator engineered for galvanic isolation of analog voltage signals. With its robust design and reliable performance, it ensures interference-free signal transmission in industrial environments.

Advantages

This isolator provides effective galvanic isolation up to 2.5 kV AC, protecting sensitive control systems from ground loops and transient voltages. Its compact DIN rail housing saves space in control cabinets, while the wide power supply range of 19.2–28.8 V AC/DC offers flexibility in various installations. The device features screw terminals for secure and maintenance-friendly wiring.

Suitable for

• Isolation of 0–10 V DC analog signals in building automation
• Signal conditioning in industrial process control
• Elimination of ground loops in measurement circuits
• Protection of PLC inputs from electrical interference

Key specifications

• Input signal: 0–10 V DC
• Output signal: 0–10 V DC
• Isolation voltage: 2.5 kV AC
• Power supply: 24 V AC/DC (19.2–28.8 V AC/DC)
• Accuracy: < 0.2% of final value
• Response time: < 10 ms
• Mounting: DIN rail TS35
• Operating temperature: -25 °C to +70 °C
• Protection class: IP20
• Housing material: Polyamide (PA)

Recommendations

For reliable signal isolation in demanding industrial applications, the METZ CONNECT PT C12 is an excellent choice. Its high accuracy and fast response make it ideal for critical control loops. Ensure proper ventilation in the enclosure to maintain optimal operating temperature.
